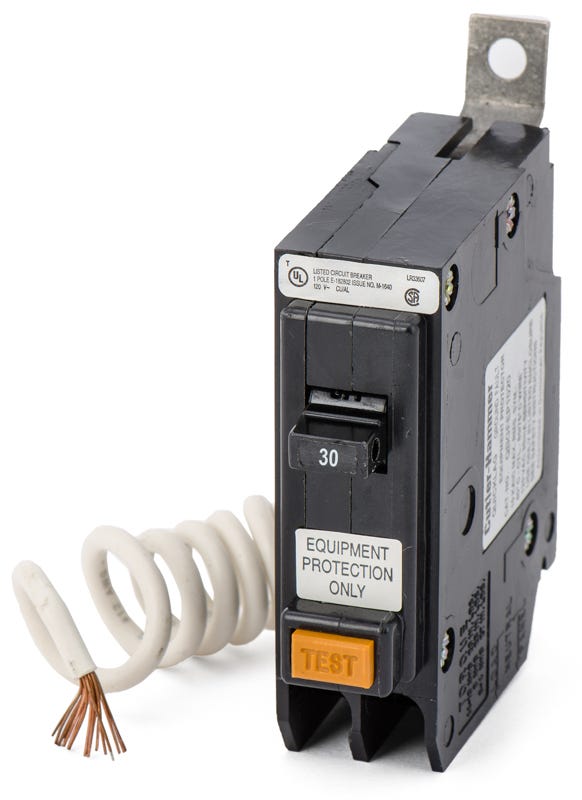

The Eaton QBGFEP1030 is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The QBGFEP1030 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | QBG |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Circuit Breaker Type | GFCI |
| Breaker Feature | 30 mA Sensitivity |
| Mpn | QBGFEP1030 |
| Upc | 786679145135 |
| Gtin | 786679145135 |
