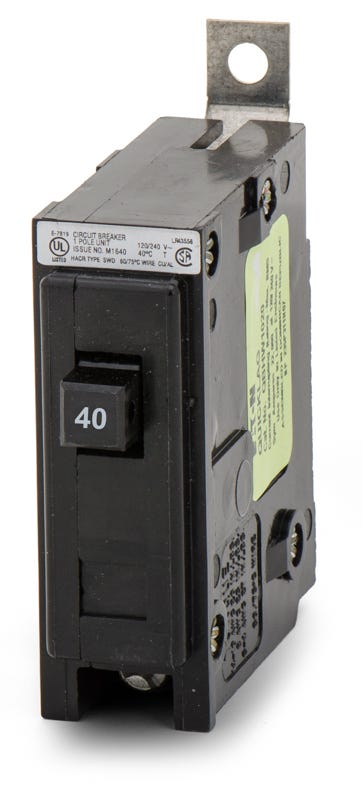

The Eaton QBHW1040 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 120/240V. It has an interrupting rating of 22kAIC at 240V. The QBHW1040 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | QBHW |
| Amperage | 40 |
| Voltage | 120/240V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 22kAIC at 240V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 3.6 |
| Width (in) | 1.2 |
| Height (in) | 4.7 |
| Standards | HACR |
| Circuit Breaker Type | QBHW |
| Mpn | QBHW1040 |
| Upc | 786679392256 |
| Gtin | 786679392256 |
