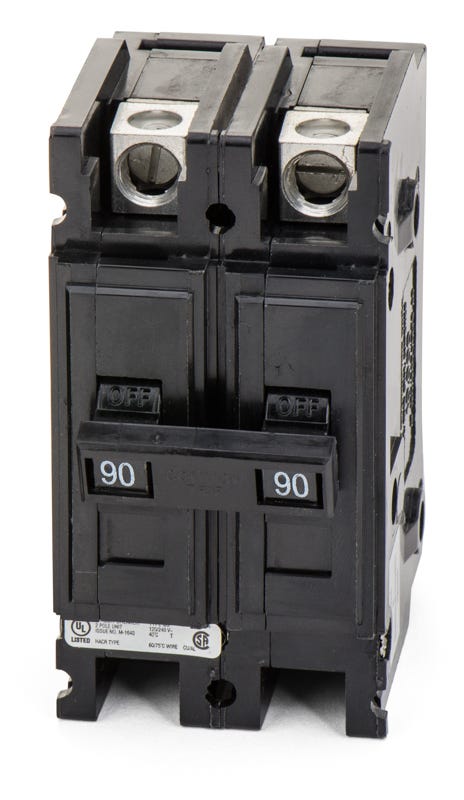

The Eaton/Cutler-Hammer QC2090 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240V. The QC2090 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | QC |
| Amperage | 90 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240V |
| Frame Type | QC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 3.6 |
| Width (in) | 2.5 |
| Height (in) | 1.9 |
| Circuit Breaker Type | QC |
| Mpn | QC2090 |
| Upc | 786679309933 |
| Gtin | 786679309933 |
