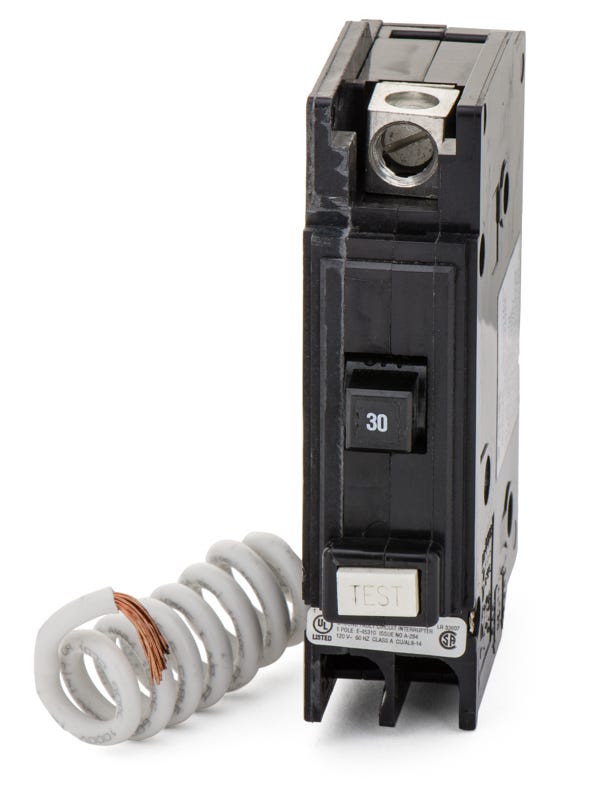

The Eaton QCGF1030 is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120V. It has an interrupting rating of 10kAIC at 120V. The QCGF1030 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | QCGF |
| Amperage | 30 |
| Voltage | 120V |
| Poles | 1 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | QC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 5.1 |
| Width (in) | 3.3 |
| Height (in) | 1.2 |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Breaker Feature | 5 mA Trip Sensitivity, Standard Interrupting Capacity |
| Mpn | QCGF1030 |
| Upc | 786679146156 |
| Gtin | 786679146156 |
