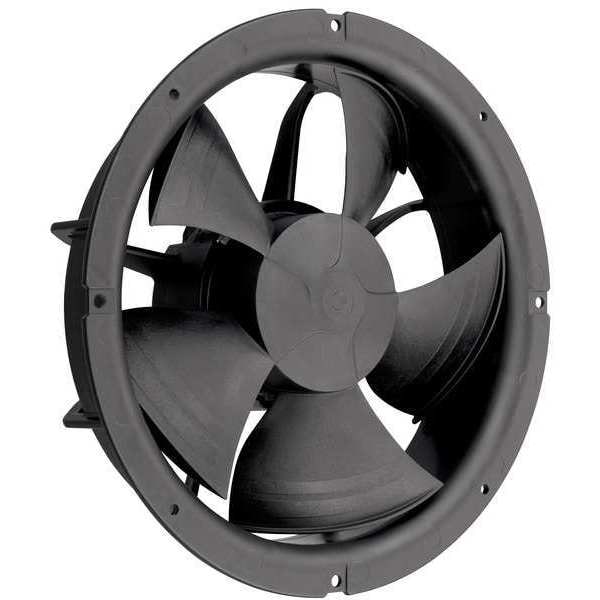

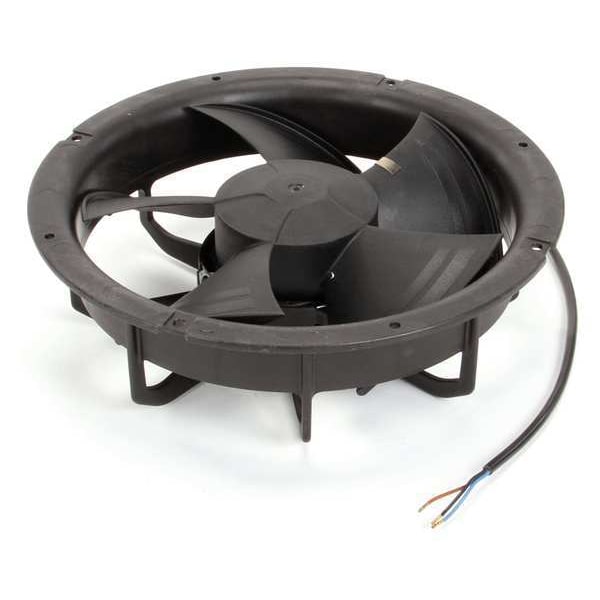

Axial Fan, Round, 115V AC, 1 Phase, Fiberglass Reinforced Polypropylene
| Blade Material | Fiberglass Reinforced Plastic PA |
|---|---|
| CFM @ 0.000-In. SP | 271 cfm |
| Depth | 3-1/8 in |
| Housing Material | Fiberglass Reinforced Polypropylene |
| Phase | 1 |
| Shape | Round |
| Watts | 31 |
| Voltage | 115V AC |
| Motor Insulation | Class B |
| Standards | UL and C-UL Recognized and RoHS compliant |
| IP Rating | IP55 |
| Mounting Eye O.C. | 9-5/16 in |
| dBA | 55 |
| Housing Finish | Black Painted |
| Electrical Connections | 17-1/2" Leads |
| Mounting Eye O.C. - Fans | 9-5/16 in |
| Fan Dia. | 9-7/8 in |
| Fan Watts | 31 |
| Fan Item | Axial Fan |
| Fan RPM | 2,100 |
| Max. Ambient Temp. | 122 deg F |
| Fan Voltage | 115VAC |
| Fan Shape | Round |
| Item | Axial Fan |
| Motor Type | Brushless DC |
| Bearings | Ball |
| Fan Depth | 3-1/8 in |
| Electrical Connection - Fans | Leads |
| Amps | 0.48 |
| Fan dBA | 55 |
| Mounting Position | Vertical or Horizontal |
| Hz | 50/60 Hz |
| Thermal Protection | Thermally Protected |
| Bearing Type | Ball |
| Diameter | 9-7/8 in |
| Environmental Applications | Equipment Cooling |
| RPM | 2100 RPM |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
