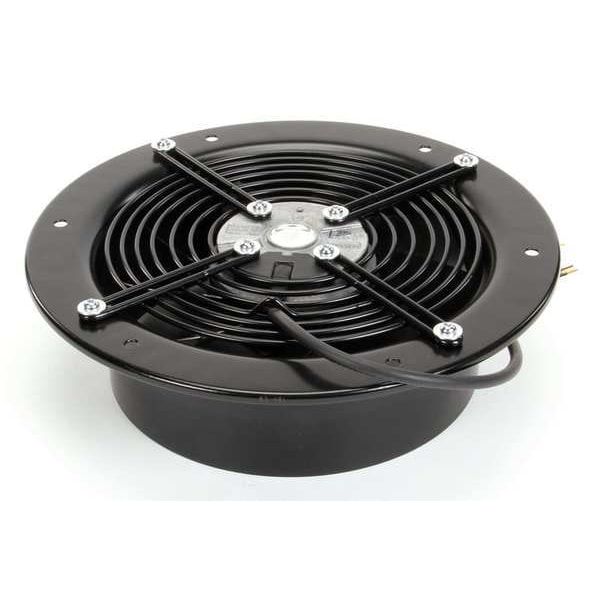

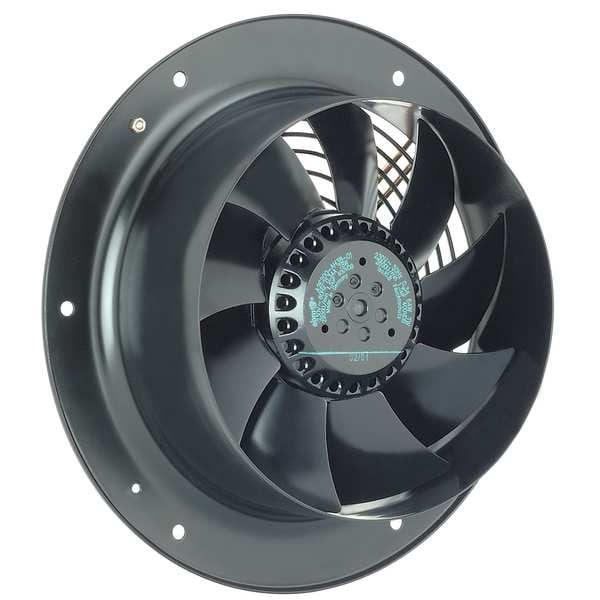

Axial Fan, Round, 115V AC, 1 Phase, Galvanized Steel, 280mm W.
| Blade Material | Sheet Steel |
|---|---|
| CFM @ 0.000-In. SP | 442 cfm |
| Depth | 3-1/2 in |
| Housing Material | Galvanized Steel |
| Phase | 1 |
| Shape | Round |
| Watts | 77 |
| Width | 280 mm |
| Includes | Discharge Grille |
| Voltage | 115V AC |
| Amps | 0.74 |
| Fan Dia. | 11 in |
| Mounting Eye O.C. - Fans | 9-7/8 in |
| Bearings | Ball |
| Electrical Connections | 17-1/2" Leads |
| Fan Depth | 3-1/2 in |
| Fan Shape | Round |
| Max. Ambient Temp. | 158 deg F |
| Fan Item | Axial Fan |
| Item | Axial Fan |
| Fan Watts | 77 |
| Mounting | Flange |
| Fan Voltage | 115VAC |
| Hz | 50/60 Hz |
| Mounting Eye O.C. | 9-7/8 in |
| Thermal Protection | Thermally Protected |
| Electrical Connection - Fans | Leads |
| Fan RPM | 2,700 |
| Requires | Breakdown voltage of at least 220VDB, Capacitor Rated for 5uF |
| Fan dBA | 62 |
| dBA | 62 |
| Mounting Position | Vertical or Horizontal |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Motor Type | PSC |
| Housing Finish | Black Powder Coated |
| Motor Insulation | Class B |
| IP Rating | 44 |
| Environmental Applications | Equipment Cooling |
| Bearing Type | Ball |
| RPM | 2700 RPM |
| Diameter | 11 in |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
