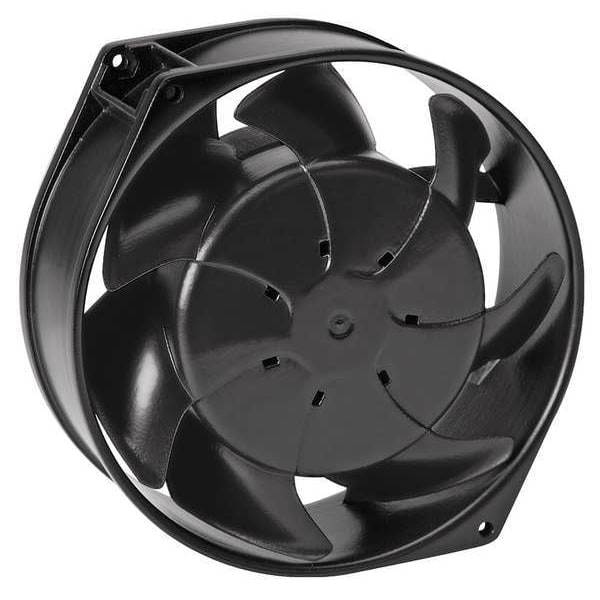

Axial Fan, Round, 230V AC, 1 Phase, Fiberglass Reinforced Polypropylene, 172mm W.
| Blade Material | Fiberglass Reinforced Polyamide |
|---|---|
| CFM @ 0.000-In. SP | 218 cfm |
| Depth | 2-5/16 in |
| Housing Material | Fiberglass Reinforced Polypropylene |
| Phase | 1 |
| Shape | Round |
| Watts | 24 |
| Width | 172 mm |
| Voltage | 230V AC |
| Housing Finish | Black |
| Amps | 0.19 |
| Fan Shape | Round |
| Fan dBA | 56 |
| Max. Ambient Temp. | 158 deg F |
| Item | Axial Fan |
| Mounting Position | Universal |
| Electrical Connection - Fans | Leads |
| Fan Voltage | 230VAC |
| IP Rating | IP55 |
| Mounting Eye O.C. | 6-3/8 in |
| Hz | 50/60 Hz |
| Motor Insulation | Class B |
| Fan Dia. | 5-61/64 in |
| Fan Depth | 2-9/32 in |
| Mounting Eye O.C. - Fans | 6-3/8 in |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan Watts | 24 |
| Electrical Connections | 17.7" Leads |
| Fan Item | Axial Fan |
| Thermal Protection | Electronic |
| dBA | 56 |
| Bearings | Ball |
| Motor Type | AC Input Electronically Commutated Brushless DC |
| Fan RPM | 3,200 |
| Bearing Type | Ball |
| Diameter | 6-3/4 in |
| RPM | 3200 RPM |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
