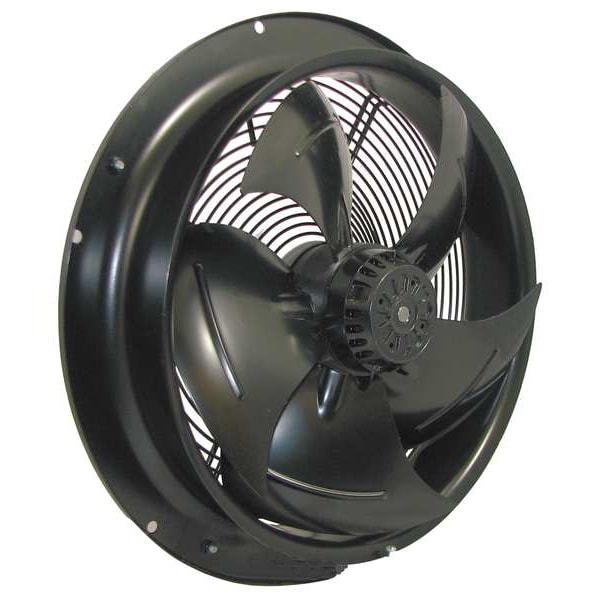

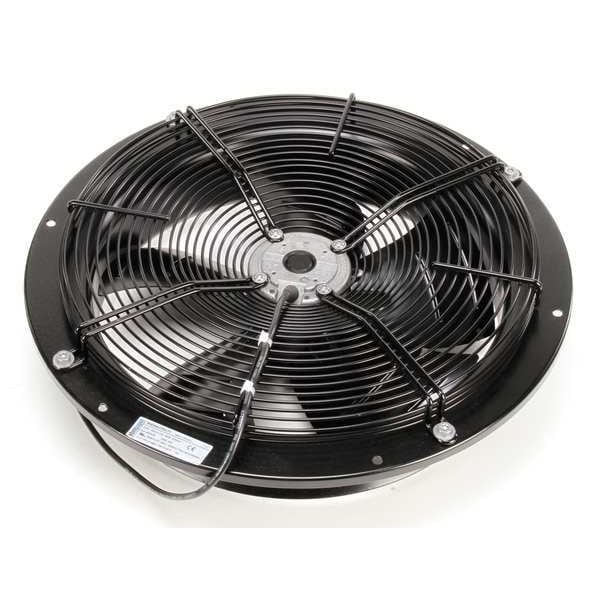

Axial Fan, Round, 230V AC, 1 Phase, Galvanized Steel, 397mm W.
| Blade Material | Galvanized Steel |
|---|---|
| CFM @ 0.000-In. SP | 2910 cfm |
| Depth | 4-3/4 in |
| Housing Material | Galvanized Steel |
| Phase | 1 |
| Shape | Round |
| Watts | 240 |
| Width | 397 mm |
| Includes | Inlet Grille |
| Voltage | 230V AC |
| Mounting Eye O.C. | 19-7/8 in |
| Fan Item | Axial Fan |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Bearings | Ball |
| Fan Voltage | 230VAC |
| Motor Type | PSC |
| Housing Finish | Black Powder Coated |
| Mounting | Flange |
| Fan Shape | Round |
| Electrical Connection - Fans | Leads |
| dBA | 73 |
| Hz | 50/60 Hz |
| Fan dBA | 73 |
| IP Rating | 44 |
| Electrical Connections | 23-1/2" Leads |
| Requires | Run Capacitor 2MDY6, 5 MFD, 440V AC |
| Fan Depth | 4-3/4 in |
| Fan Watts | 240 |
| Amps | 1.1 |
| Mounting Eye O.C. - Fans | 19-7/8 in |
| Motor Insulation | Class B |
| Mounting Position | Vertical or Horizontal |
| Max. Ambient Temp. | 104 deg F |
| Thermal Protection | Thermally Protected |
| Fan RPM | 1,700 |
| Item | Axial Fan |
| Fan Dia. | 20-3/4 in |
| Diameter | 20-3/4 in |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| RPM | 1700 RPM |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
