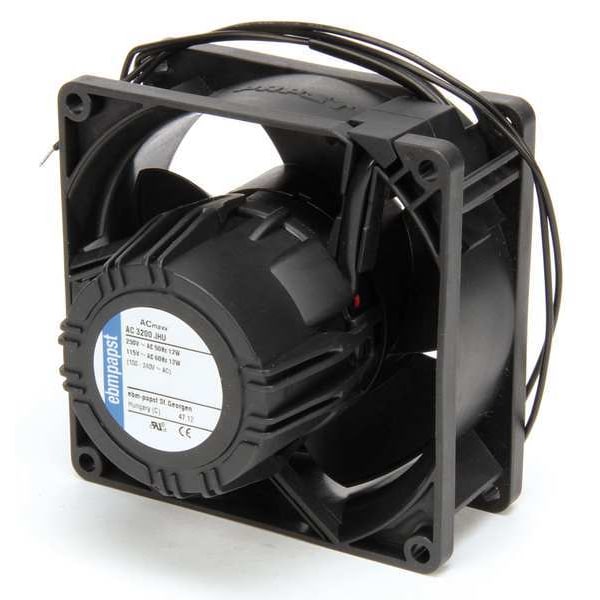

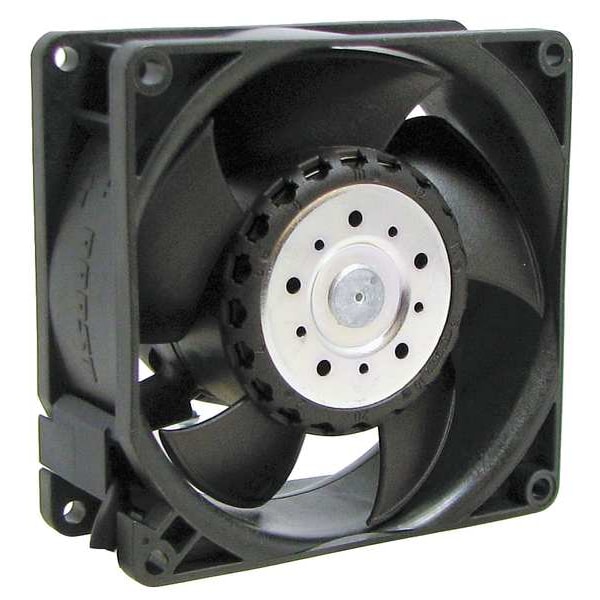

Axial Fan, Square, 115/230V AC, 1 Phase, Fiberglass Reinforced Plastic, 3 5/8 in W.
| Blade Material | Fiberglass Reinforced Polyamide |
|---|---|
| CFM @ 0.000-In. SP | 47.1 cfm |
| Depth | 1-1/2 in |
| Height | 3-5/8 in |
| Housing Material | Fiberglass Reinforced Plastic |
| Phase | 1 |
| Shape | Square |
| Watts | 11 |
| Width | 3-5/8 in |
| Voltage | 115/230V AC |
| Fan Width | 3-5/8 in |
| Motor Type | AC Input Electronically Commutated Brushless DC |
| Fan Width | 3-5/8 in |
| Fan Depth | 1-1/2 in |
| Item | Axial Fan |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan dBA | 55 |
| Thermal Protection | Electronic |
| Fan Shape | Square |
| Bearings | Ball |
| Max. Ambient Temp. | 158 deg F |
| Fan Dia. | 1 in |
| Hz | 50/60 Hz |
| Amps | 0.18 |
| Motor Insulation | Class E |
| Fan Item | Axial Fan |
| Electrical Connections | 17-1/2" Leads |
| Fan Watts | 11 |
| Fan Height | 3-5/8 in |
| dBA | 55 |
| Housing Finish | Black |
| Fan RPM | 6,800 |
| Mounting Eye O.C. - Fans | 3-1/4 in |
| Mounting Eye O.C. | 3-1/4 in |
| IP Rating | 65 |
| Electrical Connection - Fans | Leads |
| Mounting Position | Vertical or Horizontal |
| Fan Voltage | 115/230VAC |
| Bearing Type | Ball |
| RPM | 6800 RPM |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
