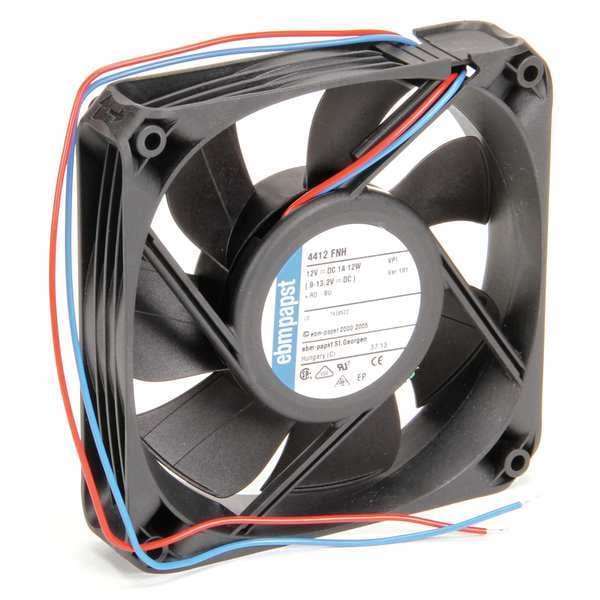

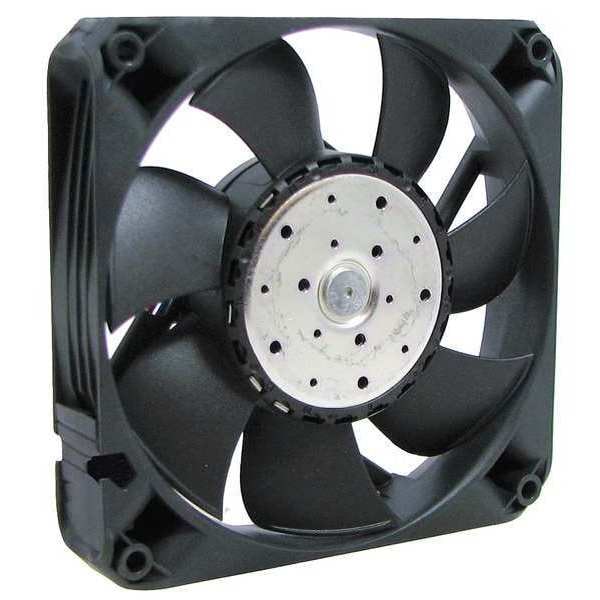

Axial Fan, Square, 12V DC, Fiberglass Reinforced Plastic, 4 11/16 in W.
| Blade Material | Fiberglass Reinforced Plastic PA |
|---|---|
| CFM @ 0.000-In. SP | 86 cfm |
| Depth | 1 in |
| Height | 4-11/16 in |
| Housing Material | Fiberglass Reinforced Plastic |
| Shape | Square |
| Watts | 12 |
| Width | 4-11/16 in |
| Voltage | 12V DC |
| Electrical Connection - Fans | Leads |
| Fan Item | Axial Fan |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan dBA | 55 |
| Fan Dia. | 1-1/2 in |
| Fan Watts | 12 |
| Mounting Eye O.C. | 4-1/8 in |
| Motor Insulation | Class E |
| Fan Width | 4-11/16 in |
| Thermal Protection | Electronic |
| Mounting Position | Vertical or Horizontal |
| Fan Shape | Square |
| Amps | 1 |
| Fan RPM | 5,400 |
| dBA | 55 |
| Electrical Connections | 12" Leads |
| Housing Finish | Black |
| Fan Height | 4-11/16 in |
| IP Rating | 20 |
| Max. Ambient Temp. | 158 deg F |
| Fan Width | 4-11/16 in |
| Fan Depth | 1 in |
| Fan Voltage | 12VDC |
| Motor Type | Brushless DC |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| Bearings | Ball |
| Mounting | Flange |
| Item | Axial Fan |
| Environmental Applications | Equipment Cooling |
| RPM | 5400 RPM |
| Bearing Type | Ball |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
