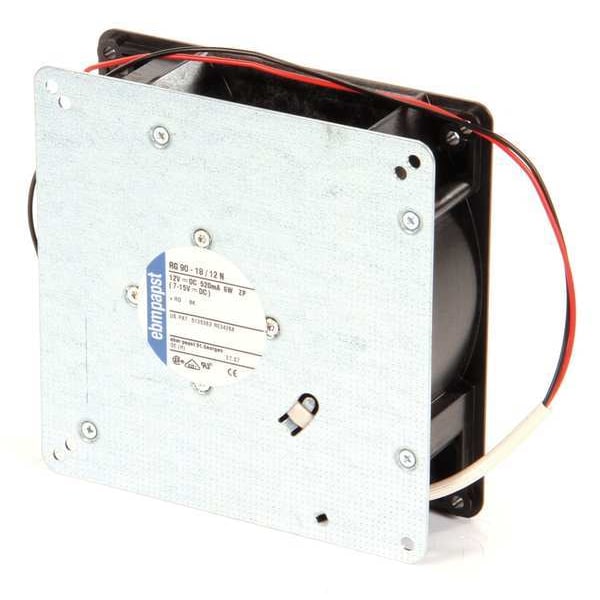

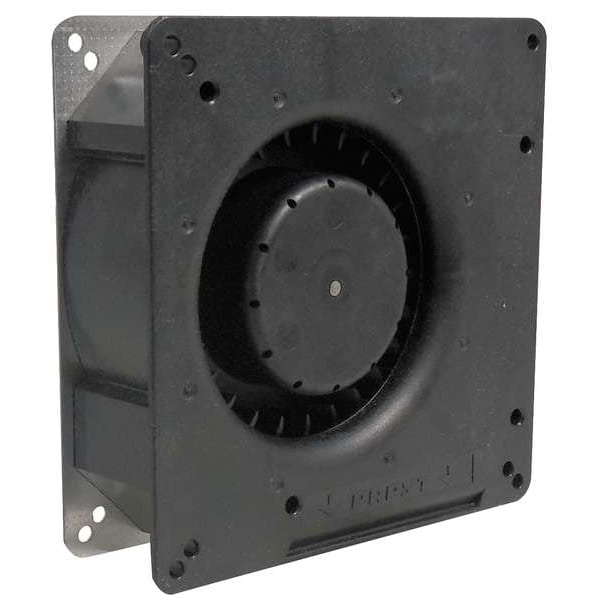

Compact Blower, Square, 12V DC, Fiberglass Reinforced Plastic with Galvanized Steel Base
| Blade Material | Fiberglass Reinforced Plastic |
|---|---|
| CFM @ 0.000-In. SP | 32.4 cfm |
| Depth | 1-1/2 in |
| Height | 5-5/16 in |
| Housing Material | Fiberglass Reinforced Plastic with Galvanized Steel Base |
| Shape | Square |
| Watts | 6 |
| Width | 5-5/16 in |
| Voltage | 12V DC |
| Bearings | Ball |
| Fan Dia. | 1-1/2 in |
| Fan Height | 5-21/64 in |
| Fan Watts | 6 |
| Motor Type | Brushless DC |
| Fan Item | Flatpack Axial Fan |
| Mounting Eye O.C. | 4-7/8 in |
| Amps | 0.5 |
| Max. Ambient Temp. | 167 deg F |
| Fan Shape | Square |
| Motor Insulation | Class E |
| Fan RPM | 2,200 |
| Fan Voltage | 12VDC |
| Fan Width | 5-21/64 in |
| Mounting | Flange |
| Item | Compact Blower |
| Fan dBA | 55 |
| dBA | 55 |
| Fan Width | 5-21/64 in |
| Housing Finish | Black Painted |
| Standards | UL |
| Fan Depth | 1-1/2 in |
| Mounting Eye O.C. - Fans | 4-7/8 in |
| Thermal Protection | Electronic |
| Electrical Connection - Fans | Lead Wires |
| Mounting Position | Vertical or Horizontal |
| Electrical Connections | 13-2/5" Leads AWG 22 |
| IP Rating | Not Rated |
| RPM | 2,200 RPM |
| Lead Length | 13 in |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| Sound Level | 55 |
| Type | Flatpack |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
