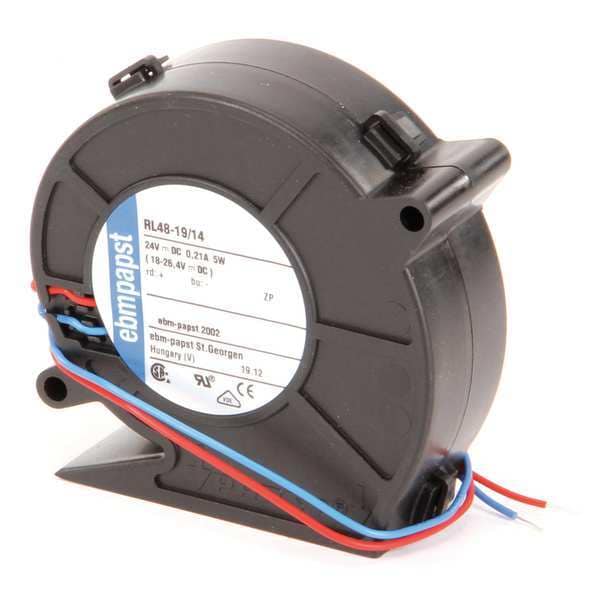

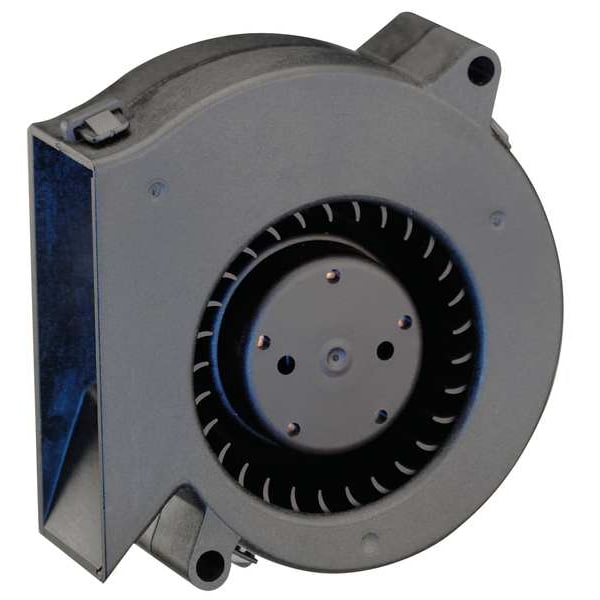

Compact Blower, Square, 24V DC, Fiberglass Reinforced Plastic, 3 in W.
| Blade Material | Fiberglass Reinforced Plastic |
|---|---|
| CFM @ 0.000-In. SP | 16.5 cfm |
| Depth | 1 in |
| Height | 3 in |
| Housing Material | Fiberglass Reinforced Plastic |
| Shape | Square |
| Watts | 5 |
| Width | 3 in |
| Voltage | 24V DC |
| Fan Height | 3 in |
| Electrical Connection - Fans | Lead Wires |
| Fan Width | 3 in |
| Fan dBA | 57 |
| Fan RPM | 4,400 |
| Mounting Position | Vertical or Horizontal |
| Housing Finish | Black |
| Fan Dia. | 1-1/16 in |
| Item | Compact Blower |
| Fan Shape | Square |
| Fan Depth | 1 in |
| Amps | 0.21 |
| Bearings | Ball |
| dBA | 57 |
| Fan Item | Flatpack Axial Fan |
| Thermal Protection | Electronic |
| Fan Voltage | 24VDC |
| Mounting Eye O.C. | 2-5/8 x 1-13/16 in |
| Standards | UL |
| Motor Type | Brushless DC |
| Fan Width | 3 in |
| Electrical Connections | 12.2" Leads AWG 26 |
| Mounting | Flange |
| Motor Insulation | Class E |
| Max. Ambient Temp. | 158 deg F |
| Fan Watts | 5 |
| Mounting Eye O.C. - Fans | 2-5/8" x 1-13/16" |
| Sound Level | 57 |
| Lead Length | 12 in |
| Environmental Applications | Equipment Cooling |
| Bearing Type | Ball |
| RPM | 4,400 RPM |
| Color | Black |
| Type | Flatpack |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
