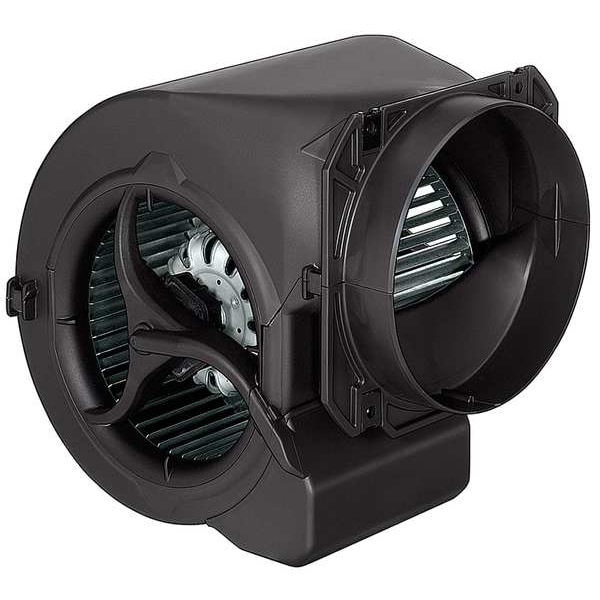

Round OEM Blower, 1800 RPM, 1 Phase, Direct Drive, Plastic 4 Speed
| CFM @ 0.100-In. SP | 605 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 3.2 |
| Housing Material | Plastic |
| Includes | Run Capacitor |
| Inlet Dia. | 5 in |
| Number of Speeds | 4 |
| Overall Height | 216 mm |
| Overall Width | 220 mm |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 5-3/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Outlet Height | 6-3/8 in |
| Outlet Width | 6-3/4 in |
| CFM @ 0.800-In. SP | 555 |
| CFM @ 0.000-In. SP | 582 |
| Outlet Dia. | 5-7/8 in |
| CFM @ 0.150-In. SP | 600 cfm |
| Max. Inlet Temp. | 122 deg F |
| CFM @ 0.600-In. SP | 572 |
| Agency Compliance | UL507 Electric Fans |
| CFM @ 0.200-In. SP | 595 |
| Mounting Position | All Position |
| CFM @ 1.200-In. SP | 527 cfm |
| CFM @ 0.300-In. SP | 590 |
| Motor Insulation | Class F |
| Overall Depth | 199 mm |
| CFM @ 0.400-In. SP | 580 |
| CFM @ 0.500-In. SP | 575 |
| Housing Color | Black |
| CFM @ 0.900-In. SP | 551 cfm |
| Max. Ambient Temp. | 122 deg F |
| CFM @ 1.600-In. SP | 492 cfm |
| Housing Finish | Black |
| Hz | 60 |
| Bearing Type | Ball |
| CFM @ 2.000-In. SP | 435 |
| RPM | 1,800 |
| CFM @ 1.000-In. SP | 545 cfm |
| Blower Wheel Width | 5-3/4 in |
| CFM @ 0.700-In. SP | 565 |
| Item | OEM Blower |
| Wheel Type | Forward-Curved |
| Wheel Width | 5-3/4 in |
| Maximum Fan Speed | 1,800 rpm |
| Flange Type | Flanged |
| Assembly | Assembled |
| Nameplate Voltage | 115V AC |
| Wheel Material | Steel |
| Minimum Ambient Temperature | -13 deg F |
| Airflow @ 0.400 in SP | 580 cfm |
| Mount Type | Any Position |
| Airflow @ 0.100 in SP | 605 cfm |
| Maximum Ambient Temperature | 104 deg F |
| Wheel Diameter | 5-3/4 in |
| Airflow @ 0.500 in SP | 575 cfm |
| Outlet Shape | Round |
| Inlet Diameter | 5 in |
| Thermal Overload Protection | Yes |
| Airflow @ 1.000 in SP | 545 cfm |
| Standards | CSA Certified, UL 507 |
| Wheel Material Finish | Galvanized |
| Includes Drive Package | Yes |
| Frequency | 60 Hz |
| Maximum Inlet Air Temperature | 122 deg F |
| Airflow @ 2.000 in SP | 435 cfm |
| Motor Type | Permanent Split Capacitor |
| Minimum Fan Speed | 2,000 rpm |
| Airflow @ 0.000 in SP | 582 cfm |
| Includes Motor | Yes |
| Rotation | CCW |
| Motor Speed | 1,800 rpm |
| Maximum Static Pressure | 2.5 in wc |
| Electrical Connection | Capacitor Integrated and Connected, Plug |
| Outlet Diameter | 5-7/8 in |
| Motor Horsepower | 0.6 HP |
| Current | 3.75 A |
| Airflow @ 0.250 in SP | 575 cfm |
| Motor Insulation Class | F |
| Number of Inlets | 2 |
| Housing Material Finish | Black |
| Motor IP Rating | IP20 |
| OEM Replacement | No |
| Voltage | 115 |
| Mounting | All Position |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
