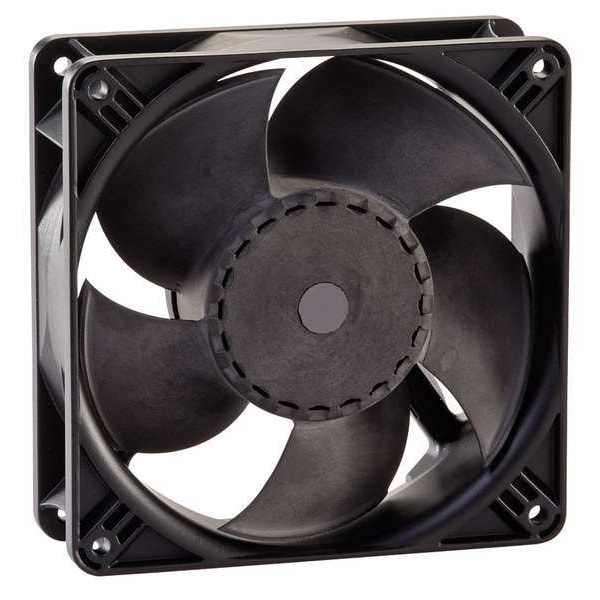

Standard Square Axial Fan, Square, 115V AC, 1 Phase, Fiberglass Reinforced Polyester, 4 11/16 in W.
| Blade Material | Fiberglass Reinforced Polyamide |
|---|---|
| CFM @ 0.000-In. SP | 103 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | Fiberglass Reinforced Polyester |
| Phase | 1 |
| Shape | Square |
| Watts | 4.4 |
| Width | 4-11/16 in |
| Voltage | 115V AC |
| Fan Dia. | 4-3/32 in |
| Fan Height | 4-11/16 in |
| Requires | Cord Set |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| dBA | 42 |
| Fan Item | Axial Fan |
| Electrical Connection - Fans | Terminals |
| Max. Ambient Temp. | 167 deg F |
| Fan dBA | 42 |
| Fan Shape | Square |
| Electrical Connections | Terminals |
| IP Rating | IP20 |
| Mounting Position | Universal |
| Motor Type | AC Input Electronically Commutated Brushless DC |
| Amps | 0.082 |
| Fan Width | 4-11/16 in |
| Mounting Eye O.C. | 4-1/8 in |
| Thermal Protection | Electronic |
| Hz | 50/60 Hz |
| Bearings | Ball |
| Motor Insulation | Class E |
| Housing Finish | Black |
| Item | Standard Square Axial Fan |
| Fan Depth | 1-1/2 in |
| Fan Width | 4-11/16 in |
| Fan Watts | 4.4 |
| Fan Voltage | 115VAC |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan RPM | 3,350 |
| Environmental Applications | Equipment Cooling |
| RPM | 3300 RPM |
| Bearing Type | Ball |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
