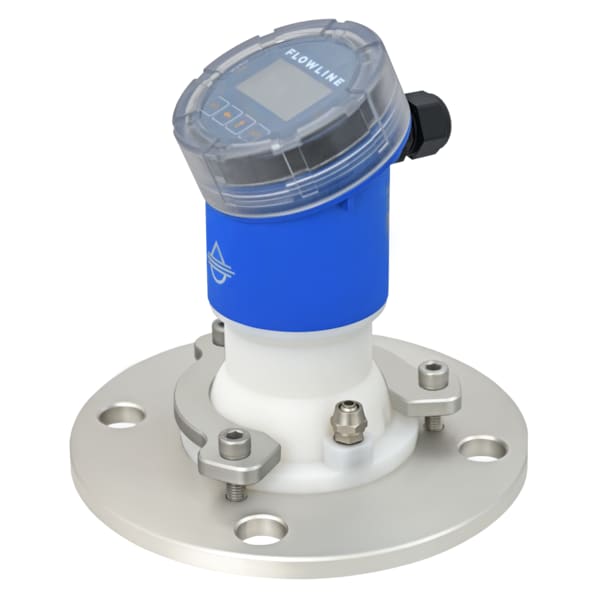

Sensor de nivel sin contacto, 80 GHz, 30V DC.
| Item | Noncontact Level Sensor |
|---|---|
| Range | 196.8 ft |
| Accuracy | +/-2 mm |
| Beam Width | 3-1/2 in |
| Beam Angle | 4 Degrees |
| Enclosure Material | PBT-FR |
| Dead Band | 0 in |
| Operating Frequency | 80 GHz |
| Standards | CE, cCSAus, FCC |
| Output Voltage Range | 4 to 20mA |
| Gasket Material | Not Applicable |
| Enclosure Rating | IP66, IP67, NEMA 4X |
| Operating Pressure - Maximum | 0 psi |
| Antenna Diameter | 3 in |
| Connection Type | DIN80 Flange |
| Media Temperature - Minimum | -40 deg F |
| Spatial Resolution | 0.079 in |
| For Media Type | Water, Aggregate Solids, Grain Powder, Pellets, Petroleum |
| Output Wire Configuration | 2-Wire |
| Voltage - Maximum | 30 V DC |
| Media Temperature - Maximum | 248 deg F |
| Display Type | LCD |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
