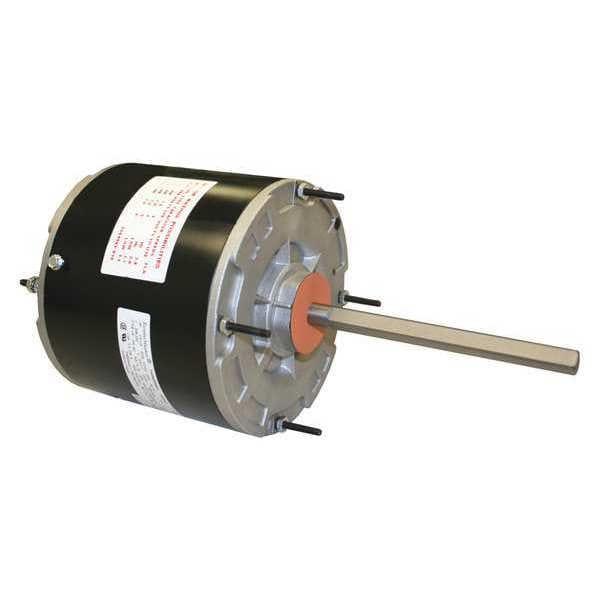

Condenser Fan Motor, 1/4 HP, 825 rpm
| Item | Condenser Fan Motor |
|---|---|
| Voltage | 208-230V AC |
| Includes | (4) Hex Nuts Polybag 9755A19H01); (4) Screws 9N194P1504B9) |
| Motor Shaft Design | Flat |
| Capacitor Required | Included |
| Motor Mounting Type | Stud, Hole |
| Nameplate RPM | 825 |
| Stud Quantity | 4 |
| Standards | CSA Certified, UL Listed |
| Motor Thermal Protection | Auto |
| Motor Design | Permanent Split Capacitor |
| Stud Size | 8 to 32 |
| Shaft Length | 6 in |
| Shaft Dia. | 1/2 in |
| Voltage Compatibility | 230V AC, 208V AC |
| Motor Mounting Position | All Angle |
| Application | Condenser Fan |
| Lead Length | 36 in |
| Motor Sub Application | Condenser Fan, Heat Pump |
| Max. Ambient Temp. | 70 deg C |
| Full Load Amps | 1.3/1.4 A |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Frame | 48Y |
| Hz | 60 |
| Motor Bearings | Ball |
| HP | 1/4 |
| Motor Service Factor | 1 |
| No. of Speeds | 1 |
| Phase | Single |
| Overall Length | 11-3/16 in |
| RPM Range | 0 to 1,000 |
| Length Less Shaft | 5-3/16 in |
| Body Dia. | 5-5/8 in |
| Motor Shaft Rotation | CCW |
| Ins. Class | F |
| Motor Application | HVAC/R |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
