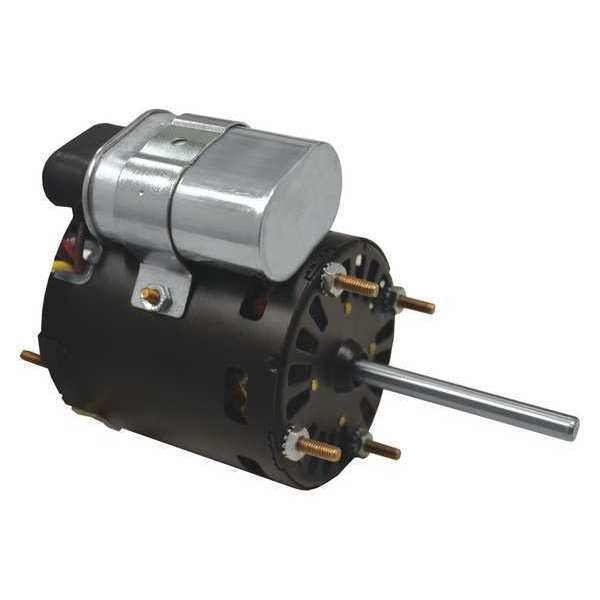

Furnace Motor, 1/12 - 1/20 HP, 1550 rpm
| Item | Direct Drive Fan/Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/12 |
| RPM Range | 1,501-1,600 |
| Nameplate RPM | 1,550 |
| Voltage | 115/230V AC |
| Frame | 3.3 |
| Motor Mounting Type | Extended Studs |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Standards | UL Listed |
| Length Less Shaft | 3-7/8 in |
| Ins. Class | B |
| Motor Bearings | Sleeve |
| Motor Shaft Design | Flat |
| Mounting Stud Length | 16/25 in |
| Weight | 3.97 lb |
| Hz | 60 |
| Usable @ 200V | Yes |
| Shaft Length | 3 in |
| Usable @ 208V | Yes |
| Voltage Compatibility | 115V AC, 230V AC |
| Shaft Dia. | 5/16 in |
| Ring to Ring Center | 5.42 in |
| Stud Size | 8 to 32 |
| Motor Shaft Rotation | CCW |
| Body Dia. | 3-5/16 in |
| Full Load Amps | 1.1/0.60 A |
| Motor Frame Material | Steel |
| Capacitor Required | Yes |
| Lead Length | 20 in |
| Overall Length | 6-7/8 in |
| Max. Ambient Temp. | 40 deg C |
| No. of Speeds | 1 |
| Resilient Ring Dia. | 2-1/4 in |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Motor Sub Application | Freezer, Refrigerator |
| Motor Mounting Position | Horizontal |
| Conduit Box Position | Not Applicable |
| Motor Application | HVAC, R |
| Bearing Protection | Not Applicable |
| Output Watts | 0.06 kW |
| Blade Material | Not Applicable |
| Fan Mounting Type | Not Applicable |
| Includes Blade | Not Applicable |
| Blade Finish | Not Applicable |
| Blade Diameter | Not Applicable |
| Inverter Rated | No |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
