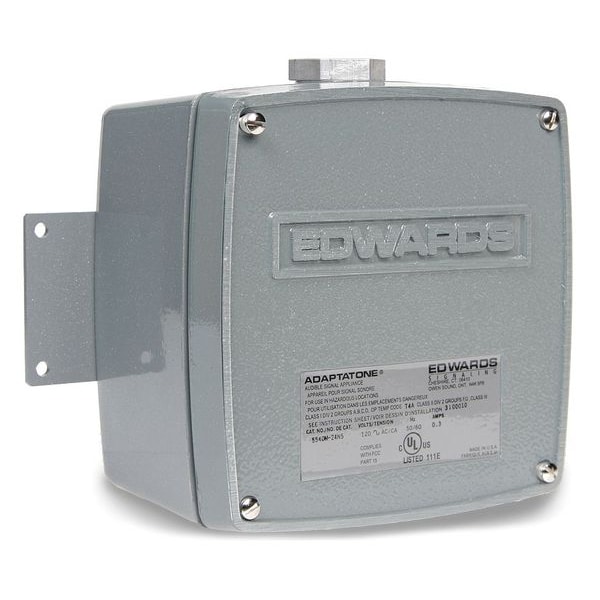

Central Tone Generator, 120VAC, 0.36A, Gray
| Item | Tone Generator |
|---|---|
| Housing Material | Zinc Alloy |
| Mounting | Surface, Conduit |
| Amps | 0.36 |
| Color | Grey |
| Audible Alarm Type | Horn |
| Voltage | 120V AC |
| Standards | cULus, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 110 dB |
| Sound Pattern | Continuous |
| Hazardous Class | I, II, III |
| Hazardous Division | 2 |
| Visual Indicator Type | No Visual Indicator |
| Width | 8 in |
| Operating Temp. | -31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non-Hazardous Locations |
| Depth | 3-1/2 in |
| Height | 4 in |
| Vibrating | No |
| Alarm Type | Audible |
| Power Source | Wire |
| Input Voltage | 120 V AC |
| Features | Captive Components, System-Wide Priority Tone Selection |
| Product Type | Tone Generator |
| Material | Zinc Alloy |
| Battery Size | Not Applicable |
| Overall Width | 8 in |
| Number of Sound Patterns | 55 |
| For Location | Indoor, Outdoor |
| Operating Temperature - Maximum | 104 deg F |
| Sound Continuity | Continuous |
| Volume Selection | Selectable Volume |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| Vibration | No Vibration |
| Overall Depth | 3-1/2 in |
| Operating Current | 0.360 A |
| Connection Type | Wire Leads |
| Includes Batteries | Not Applicable |
| IP Rating | IP44 |
| NEMA Rating | NEMA 3R |
| Number of Batteries | Not Applicable |
| Sound Style | Tone |
| Overall Length | 6 in |
| Operating Temperature - Minimum | -31 deg F |
| Mounting Style | Surface Mount |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
