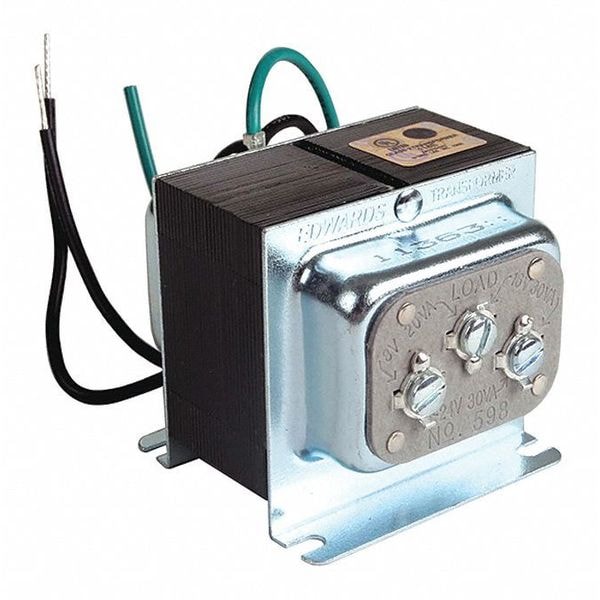

Class 2 Transformer, 20 VA @ 8V AC, 30 VA @ 16V AC, 30 VA @ 24 V AC, Not Rated, Not Rated, 120V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| VA Rating - Transformer | 20 VA @ 8V AC, 30 VA @ 16V AC, 30 VA @ 24 V AC |
| Width | 2.94 in |
| Primary Connection | Pigtails |
| Enclosure Finish | No Finish |
| Enclosure Rating | Not Rated |
| Output Voltage - Transformer | 8/16/24V AC |
| Phase - Electrical | 1 |
| Temp. Rise | Not Rated |
| Depth | 2-1/4 in |
| Enclosure Type | Enclosed |
| Secondary Connection | Screw Terminals |
| Enclosure Style - Transformer | Open |
| Standards | CSA Certified, UL Listed |
| Height | 2.13 in |
| Protective Device | Circuit Breaker |
| Connection - Secondary | Screw Terminal |
| Wire Lead Length - Secondary | Not Applicable |
| Connection - Primary | Wire Lead |
| Package Quantity | 1 |
