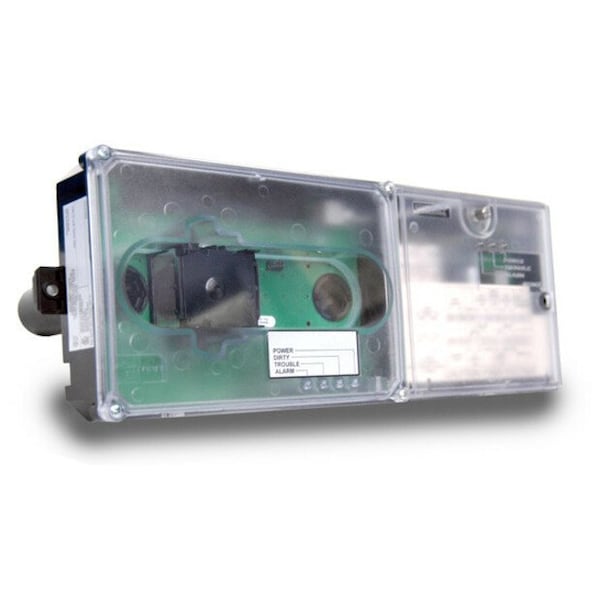

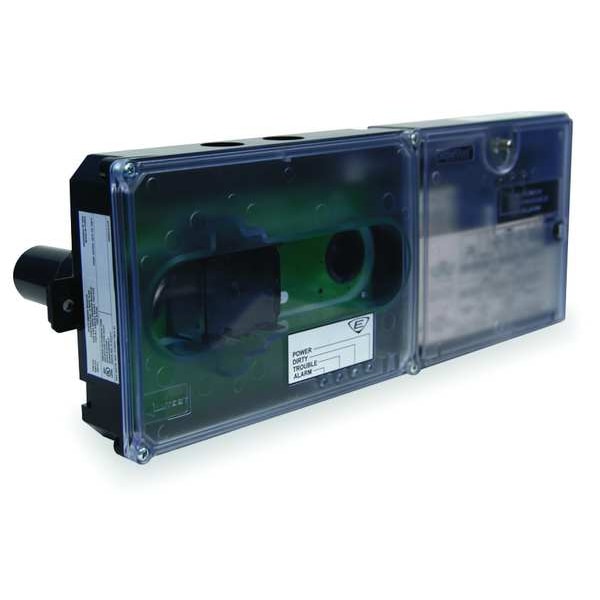

Duct Smoke Detector, L 14 1/2 In
| Item | Duct Smoke Detector |
|---|---|
| Power Source | Hardwired |
| Overall Width | 14-1/2 in |
| Overall Height | 5.45 in |
| Maximum Operating Temperature | 158 deg F |
| Standards | CSFM, FM, UL, ULC |
| Standby State (mA) | 25 |
| Finish | Plastic |
| Standby Current (uA) | 25 |
| Ambient Temp. Limits (F) | -20 to 158 deg F |
| Type | Photoelectric |
| Voltage | 120V AC, 20 to 31V DC, 220/240V AC, 24V AC, 24V DC |
| Air Velocity (FPM) | 100 to 4,000 fpm |
| Alarm Current | 35 mA |
| Humidity Range | 20 to 95% RH |
| Depth | 1-7/8 in |
| Color | Clear, Black |
| Length | 14-1/2 in |
| Outside Diameter | Not Applicable |
| Detects | Smoke |
| Minimum Operating Temperature | -4 deg F |
| Coverage Area | 10 Years Limited |
| Humidity Operating Range | 10% to 93% RH |
| Mount Type | Surface |
| Voltage Rating | 120V AC, 20 to 31V DC, 220 or 240V AC, 24V AC, 24V DC |
| Shape | Rectangular |
| Visual Alert Type | Red LED, Green LED, Yellow LED |
| Alert Type | Light |
| Detector Type | Smoke Detector |
| Current Rating | 35 mA |
| Environment | Indoor |
| Sensor Type | Photoelectric |
| Battery Chemistry | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
