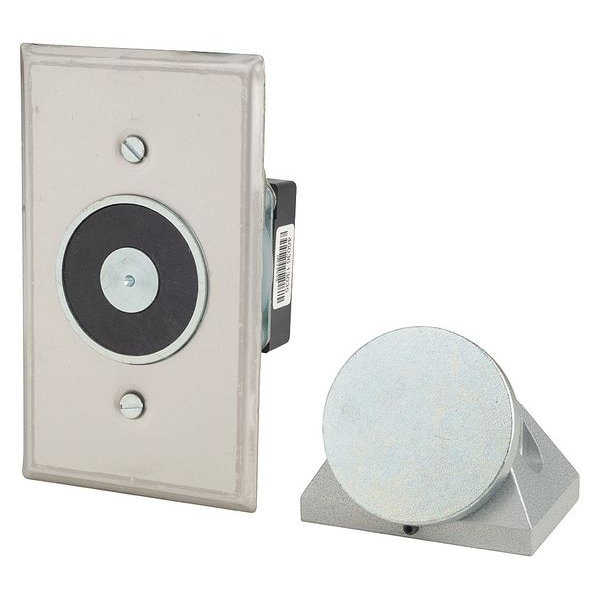

Electro. Door Holder, Flush Mount, 120VAC
| Item | Electromagnetic Door Holder |
|---|---|
| Finish | Aluminum |
| Material | Die Cast Metal |
| Includes | Mounting hardware |
| Series | 1509 |
| Power Required | 0.15A @ 120V AC, 0.15A @ 24V AC/DC |
| Strike Plate Length | 2 in |

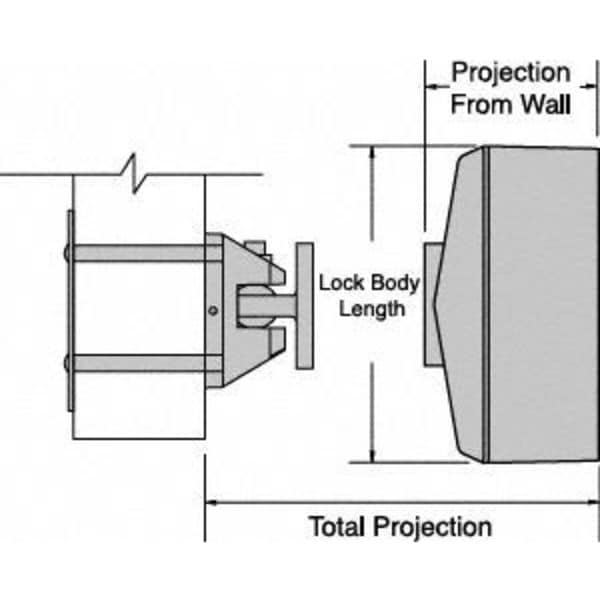

| Total Projection | 1-27/32 in |
| Lock Body Depth | 1/8 in |
| Holding Force | 25 to 50 lb |
| Standards | CSFM Listed, FM Approved, UL Listed |
| Strike Plate Depth | 1 5/8 in |
| Projection from Wall | 7/32 in |
| Strike Plate Width | 2 in |
| Lock Body Length | 4-5/8 in |
| Mfr. Series | 1509 |
| Lock Body Width | 2-3/4 in |
| Voltage | 120V AC, 24V AC/DC |
| Power Source | AC Power, DC Power |
| Strike Plate Height | 2 in |
| Failure Mode | Fail Safe |
| Holding Force - Maximum | 25 lb |
| Strike Plate Thickness | 1-5/8 in |
| ANSI/BHMA Finish | Aluminum Painted |
| Projection | 1-7/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
