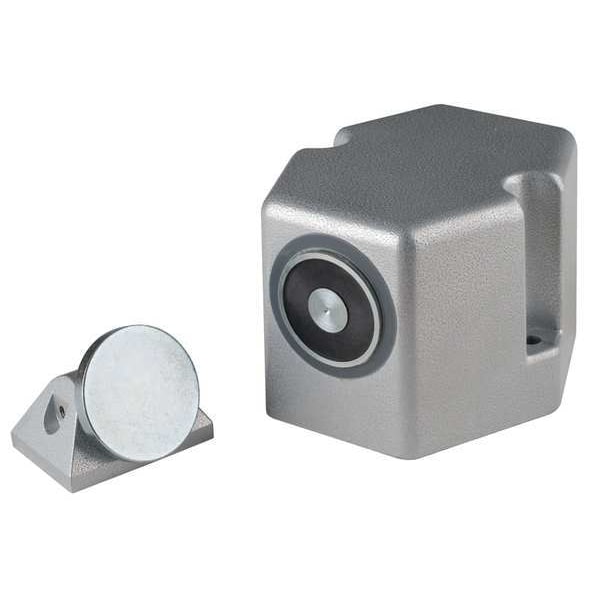

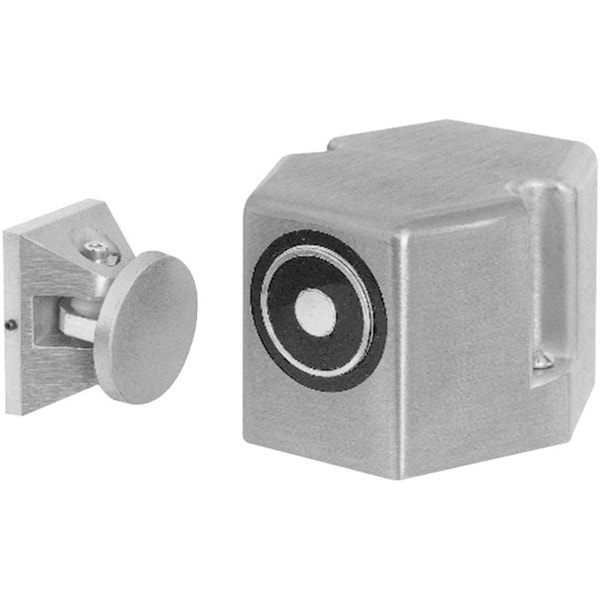

Electromagnetic Door Holder, L 4-13/16 In
| Item | Electromagnetic Door Holder |
|---|---|
| Finish | Aluminum |
| Material | Die Cast Metal |
| Includes | Mounting hardware |
| Power Required | 0.15A @ 120V AC, 0.15A @ 24V AC/DC |
| Standards | CSFM Listed, FM Approved, UL Listed |

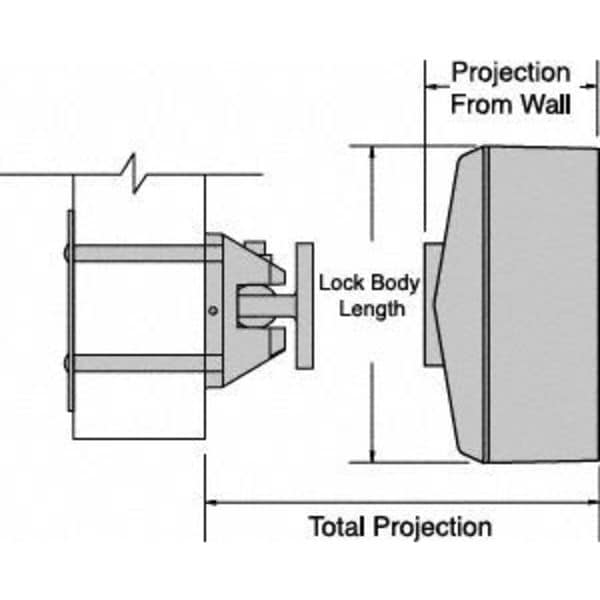

| Projection from Wall | 4-13/16 in |
| Lock Body Width | 4-5/8 in |
| Lock Body Length | 3-1/4 in |
| Holding Force | 25 to 50 lb |
| Lock Body Depth | 3-1/4 in |
| Total Projection | 6-7/16 in |
| Voltage | 120V AC, 24V AC/DC |
| Power Source | AC Power, DC Power |
| Failure Mode | Fail Safe |
| Strike Plate Thickness | 1-5/8 in |
| Projection | 6-7/16 in |
| Holding Force - Maximum | 25 lb |
| ANSI/BHMA Finish | Aluminum Painted |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
