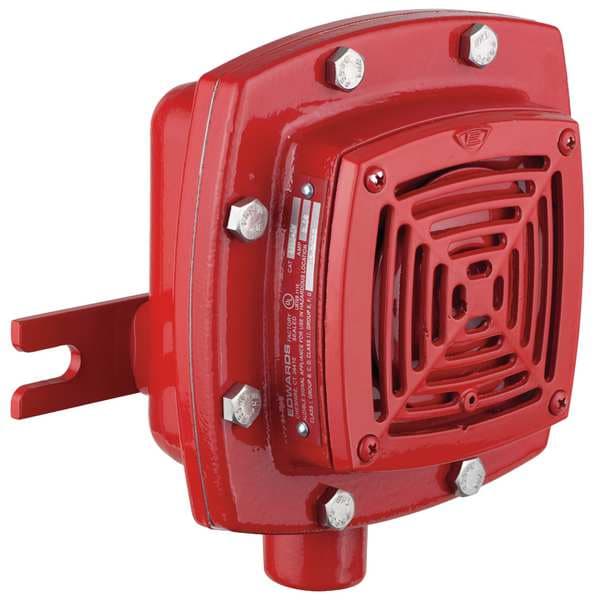

Haz. Location Horn, Red, 20-24VDC
| Item | Horn |
|---|---|
| Standards | UL Listed |
| Voltage | 20 to 24V DC |
| Includes | (2) Mounting Brackets |
| Finish | Red Corrosion-Resistant Epoxy |
| Package Quantity | 1 |
| Peak Output (dBA) | 97 dBA |
| Alarm Current | .16A |
| Product Type | Horn |
| Features | Diode Polarized, Low Current Drain, Red Corrosion Resistant Heat Flowed Epoxy Finish |
| Overall Diameter | Not Applicable |
| Color | Red |
| Operating Current | 0.16 A |
| Sound Principle | Vibrating |
| Control Protocol | Direct Wire |
| Connection Type | Wire Leads |
| For Hazardous Location | Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2 |
| Operating Temperature - Minimum | 25 deg F |
| Includes Mounting Hardware | Mounting Hardware Included |
| Alarm Volume @ 1 m - Maximum | 94 dB |
| Alarm Volume @ 10 ft - Maximum | 84 dB |
| Overall Width | 7-3/8 in |
| Vibration | Vibrating |
| Sound Style | Horn |
| Overall Depth | 4-3/16 in |
| NEMA Rating | NEMA 4 |
| Overall Length | 7-5/8 in |
| Wattage | 3.8 VA |
| Power Source | Wire |
| Operating Voltage | 20 to 24V DC |
| Country of Origin (subject to change) | Mexico |
