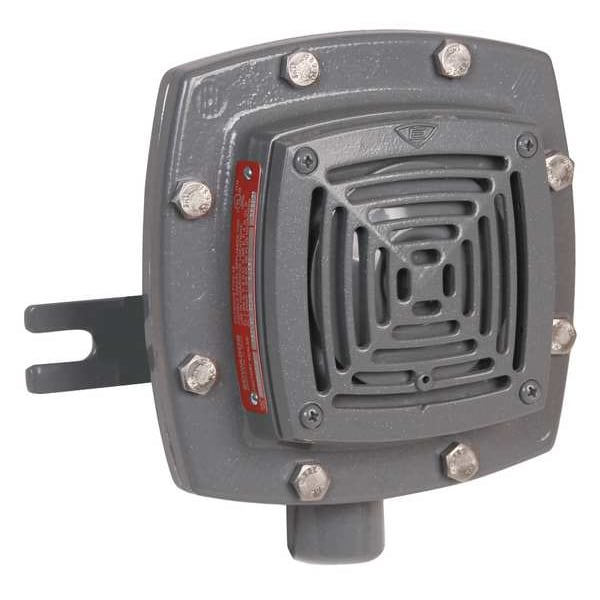

Haz Location Vibrating Horn, 24VAC, 0.625A
| Item | Horn |
|---|---|
| Housing Material | Heavy Duty Die Cast |
| Mounting | Wall |
| Amps | 0.625 |
| Color | Grey |
| Audible Alarm Type | Horn |
| Voltage | 24V AC |
| Standards | UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 97 dB |
| Sound Pattern | Continuous |
| Hazardous Division | 1, 2 |
| Width | 4-7/8 in |
| Visual Indicator Type | No Visual Indicator |
| Operating Temp. | -13 Degrees to 104 Degrees F |
| Vibrating | Yes |
| Height | 4-7/8 in |
| Hazardous Class | I, II, III |
| Depth | 3-5/16 in |
| Power Source | Wire |
| Features | Corrosion Resistant Heat Flowed Epoxy Finish |
| Overall Depth | 3-5/16 in |
| Material | Heavy Duty Die Cast |
| Product Type | Horn |
| Rating | NEMA 4X |
| Number of Batteries | Not Applicable |
| Vibration | Vibrating |
| Overall Width | 4-7/8 in |
| Operating Current | 0.625A |
| Alarm Volume @ 1 m - Maximum | 110 dB |
| Number of Sound Patterns | 1 |
| NEMA Rating | NEMA 4X |
| Includes Batteries | Not Applicable |
| For Location | Indoor, Outdoor |
| Overall Length | 4-7/8 in |
| Battery Size | Not Applicable |
| Sound Style | Horn |
| Alarm Volume @ 10 ft - Maximum | 100 dB |
| For Hazardous Location | Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2 |
| IP Rating | NEMA 4X |
| Sound Principle | Vibrating |
| Operating Temperature - Maximum | 104 deg F |
| Sound Continuity | Continuous |
| Operating Temperature - Minimum | -13 deg F |
| Operating Voltage | 24V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
