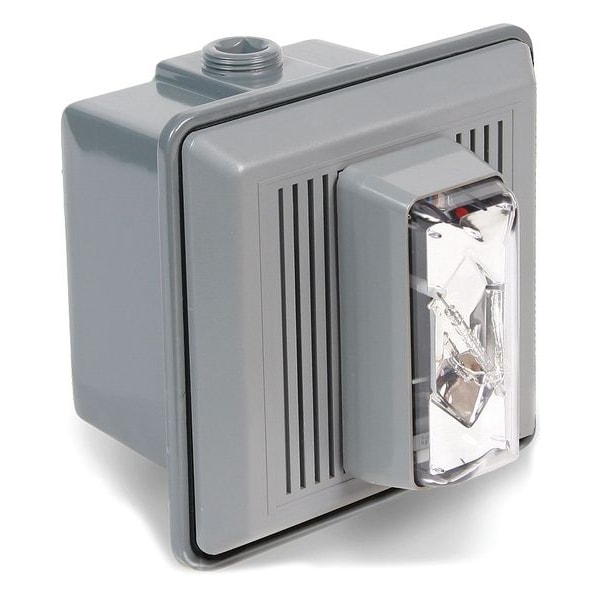

Horn Strobe, Clear, 5-1/2 In. H, 24VAC/DC
| Item | Horn Strobe |
|---|---|
| Housing Material | Thermoplastic |
| Mounting | Surface |
| Amps | 412 mA @ 24V DC, 462 mA @ 24V AC |
| Color | Lens, Gray Housing |
| Audible Alarm Type | Horn |
| Voltage | 24V AC/DC |
| Standards | UL Listed |
| Indoor/Outdoor | Outdoor |
| Decibels | 90 dB |
| Sound Pattern | Continuous |
| Operating Temp. | 32 Degrees to 120 Degrees F |
| Housing Color | Gray |
| Depth | 5/8 in |
| Vibrating | No |
| Light Output | 150 CP |
| Lens Color | Clear |
| Width | 5-1/2 in |
| Flashes per Minute | 60 |
| Visual Indicator Type | Strobe |
| Height | 5-1/2 in |
| Current Drawn | 462 mA @ 24V AC, 412 mA @ 24V DC |
| Power Source | Wire |
| Overall Depth | 5/8 in |
| Product Type | Horn, Strobe |
| Brightness Selection | Fixed Brightness |
| Number of Sound Patterns | 1 |
| Alarm Volume @ 10 ft - Maximum | 90 dB |
| Overall Diameter | Not Applicable |
| Alarm Volume @ 1 m - Maximum | 100 dB |
| Mounting Style | Surface Mount |
| Includes Batteries | Not Applicable |
| For Location | Outdoor |
| Control Protocol | Direct Wire |
| Sound Style | Horn |
| Number of Batteries | Not Applicable |
| Connection Type | Wire Leads |
| For Hazardous Location | Not Applicable |
| Vibration | No Vibration |
| Overall Length | 5-1/2 in |
| Operating Temperature - Minimum | -31 deg F |
| Operating Current | 0.462 A @ 24V AC, 0.412 A @ 24V DC |
| Operating Temperature - Maximum | 150 deg F |
| Sound Continuity | Continuous |
| Battery Size | Not Applicable |
| Light Source | Xenon |
| Overall Width | 5-1/2 in |
| Light Intensity | 150 CP |
| Light Operating Mode | Strobe |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
