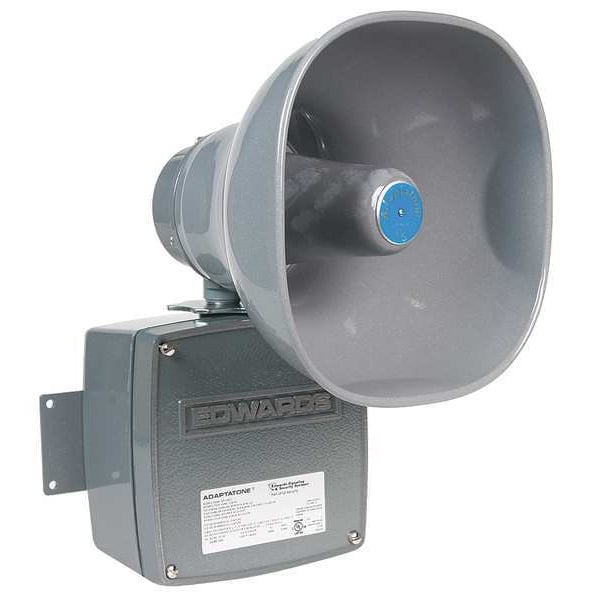

Multi-Tone Horn, NEMA 3R, Division 2
| Item | Multi-Tone Horn |
|---|---|
| Type | Division 2, NEMA 3R |
| Standards | cULus, UL Listed |
| Voltage | 24 V DC |
| Enclosure Material | Cast Zinc |
| Enclosure Color | Red |
| Sensitivity (dB) | 110 |
| Overall Length (In.) | 8 |
| Overall Height (In.) | 15 |
| Package Quantity | 1 |
| Overall Width (In.) | 8-7/8 |
| For Use With | E-FSC1004, E-FSC302, E-FSC502, EBPS |
| Product Type | Horn |
| Application | Fire Alarm, Security, Evacuation, Industrial, Paging, Emergency, Signaling, Weather Warning |
| Features | Suitable for Division 2 Locations |
| Number of Sound Patterns | 55 |
| Operating Current | 0.630 to 1.000 A |
| Sound Style | Horn |
| Mounting Style | Surface Mount |
| NEMA Rating | NEMA 3R |
| IP Rating | IP44 |
| Overall Width | 8 in |
| Alarm Volume @ 10 ft - Minimum | 95 dB |
| Color | Red |
| For Location | Indoor, Outdoor |
| Overall Length | 3-1/2 in |
| Overall Depth | 8-3/4 in |
| Alarm Volume @ 1 m - Minimum | 98 dB |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| Material | Cast Zinc |
| Operating Voltage | 20 to 31V DC |
| Country of Origin (subject to change) | United States |
