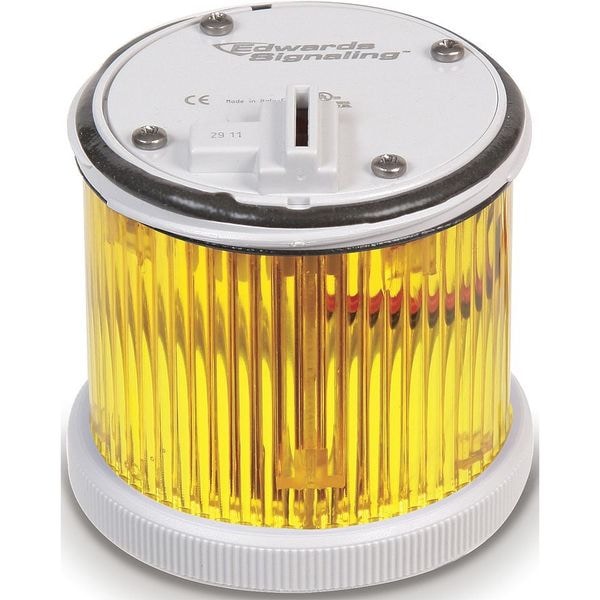

Tower Light Module, 12 to 48VDC, 70mm
| Item | Tower Light Module |
|---|---|
| Standards | CE Approved, cULus Listed |
| Voltage | 48V DC |
| Diameter | 70 mm |
| Housing Material | Polycarbonate |
| Lighting Technology | LED |
| Current Drawn | 0.103 A |
| Includes | Gasket |
| Height | 3.11 in |
| Flashes per Minute | 110 |
| Color | Yellow |
| Lens Material | Polycarbonate |
| For Use With | 200 Class 70mm Stacklight(TM) |
| Mounting | Base |
| Tower Light Color | Amber |
| Lens Design | Simple |
| Rating | UL |
| Lamp Life | 100,000 hr, 2,000 hr |
| Tower Light Series | 270BC |
| Bulb Technology | LED |
| Lamp Type | Led, Incandescent |
| Operating Temp. | -22 to 140 deg F |
| Width | 2.83 in |
| NEMA Rating | NEMA 3R, NEMA 4X |
| Overall Height | 3-1/8 in |
| Light Color | Yellow |
| Operating Voltage | 12 to 48V DC |
| Housing Color | Gray |
| Lens Shape | Dome |
| Operating Current | 0.103 A @ 48V DC, 0.210 A @ 24V DC, 0.430 A @ 12V DC |
| Overall Diameter | 70 mm |
| Light Source | LED |
| Overall Width | Not Applicable |
| Lifespan | 100,000 hr |
| For Hazardous Location | Not Applicable |
| Light Operating Mode | Flashing |
| Operating Temperature - Minimum | -22 deg F |
| Operating Temperature - Maximum | 140 deg F |
| IP Rating | IP54, IP65 |
| For Location | Indoor, Outdoor |
| Overall Length | Not Applicable |
| Compatible Series | 200 Class |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
