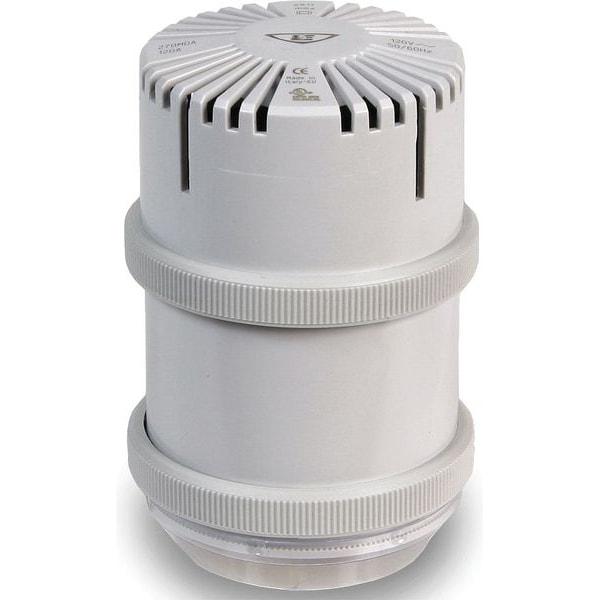

Tower Light Sounder Tier, 75mm
| Item | Tower Light Sounder Tier |
|---|---|
| Standards | CE Approved, CULus Listed |
| Voltage | 12/24V AC/DC |
| Diameter | 70 mm |
| Housing Material | Polycarbonate |
| Current Drawn | 0.12 to 0.95A @ 12V AC, 30 to 335 mA @ 12V DC, 0.17 to 1.06A @ 24V AC, 45 to 450 mA @ 24V DC |
| Includes | Not Applicable |
| Height | 4.1 in |
| Color | Gray |
| For Use With | 200 Class Stacklighttm |
| Sound Modes | Multi-tone |
| Sound Level | 87dB to 107dB |
| Operating Temp. | -22 to 140 deg F |
| Tower Light Series | 200 Class |
| NEMA Rating | NEMA 3R |
| Overall Height | 4-1/8 in |
| Wattage | Not Applicable |
| Overall Width | Not Applicable |
| Overall Length | Not Applicable |
| IP Rating | IP54 |
| Operating Current | 0.030 to 0.335 A @ 12V DC, 0.045 to 0.450 A @ 24V DC, 0.120 to 0.950 A @ 12V AC, 0.170 to 1.060 A @ 24V AC |
| Housing Color | Gray |
| Operating Temperature - Maximum | 140 deg F |
| Compatible Series | 200 Class |
| For Location | Indoor |
| Operating Temperature - Minimum | -22 deg F |
| Sound Style | Tone |
| Overall Diameter | 2-15/16 in |
| Sound Operating Mode | Steady |
| Number of Sound Patterns | 15 |
| Sound Volume - Minimum | 87 dB |
| Volume Selection | Selectable Volume |
| For Hazardous Location | Not Applicable |
| Sound Volume - Maximum | 107 dB |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
