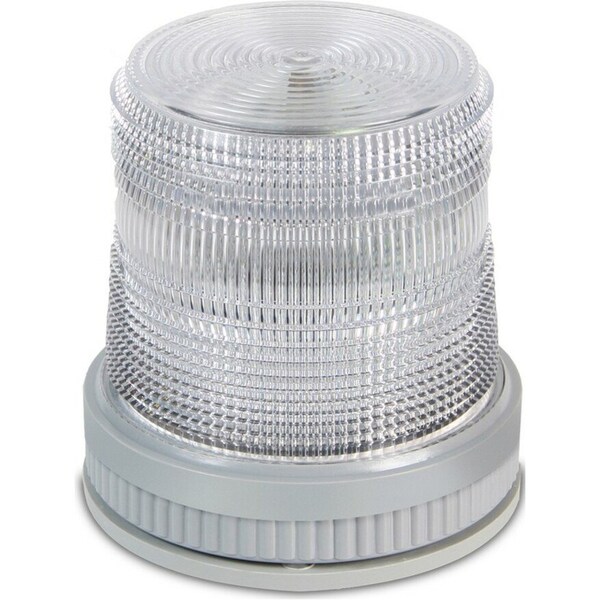

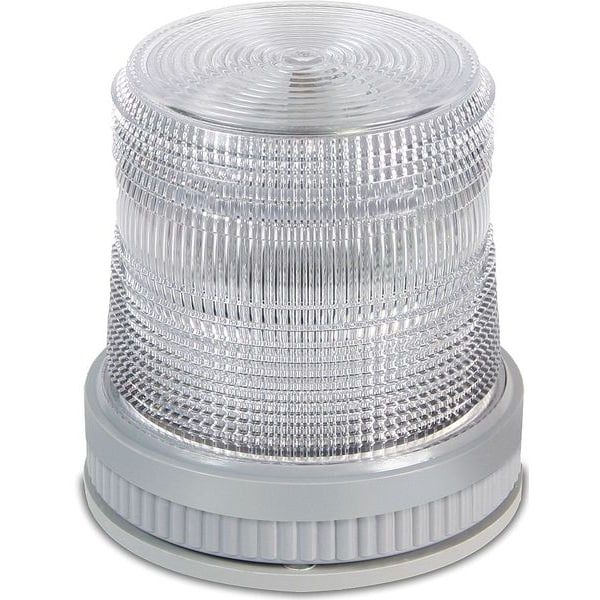

Visual Signal Light, Multi-Status, RGA
| Item | Warning Light |
|---|---|
| Color | Red, Green, Amber |
| Lamp Type | LED |
| Power Source | Wire |
| Lamp Life | 148,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 65, 120, 240 |
| Height | 4-5/8 in |
| Housing Material | Glass Reinforced Thermoplastic Polyester Resin |
| Standards | CUL Listed, UL Listed |
| Diameter | 4-1/2 in |
| Features | Corrosion Resistant, DIP Switch Settings, Shatter Resistant |
| Lens Design | Fresnel |
| Current Drawn | 0.15 A AC |
| Width | 4-1/2 in |
| Voltage | 24V DC |
| Rating | NEMA 4X |
| Depth | 4-1/2 in |
| Includes | Polyurethane Gasket |
| Operating Temp. | -31 to 150 deg F |
| For Use With | Marine |
| Product Type | Indicator Light |
| Connection Type | Wire Leads |
| Tower Light Color | Amber, Green, Red |
| Material | Glass Reinforced Thermoplastic Polyester Resin |
| Audible Alarm Type | Visual |
| NEMA Rating | NEMA 4X |
| Overall Width | Not Applicable |
| Overall Length | Not Applicable |
| Operating Current | 0.150 A |
| Number of Lamps | 6 |
| Light Source | LED |
| For Location | Indoor, Outdoor |
| Lifespan | 148,000 hr |
| Operating Temperature - Maximum | 150 deg F |
| Battery Size | Not Applicable |
| Light Operating Mode | Steady |
| Includes Mounting Hardware | No Mounting Hardware |
| Footprint Shape | Not Applicable |
| Requires Base | Base Required |
| Control Protocol | Direct Wire |
| Overall Depth | 4-5/8 in |
| IO-Link Compatibility | Not IO-Link Compatible |
| Overall Diameter | 4-1/2 in |
| Footprint Length | Not Applicable |
| Operating Temperature - Minimum | -31 deg F |
| Mounting Style | Surface Mount |
| Lamp Color | Red, Green, Amber |
| Footprint Diameter | 3-3/4 in |
| Lens Color | Clear |
| Includes Batteries | Not Applicable |
| Runtime | Not Applicable |
| Lead Length | 24 in |
| Number of Batteries | Not Applicable |
| Footprint Width | Not Applicable |
| For Hazardous Location | Class I, Division 2, Class II, Division 2, Class III |
| Mounting Mechanism | 3/4 in FNPT |
| Vibration | No Vibration |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
