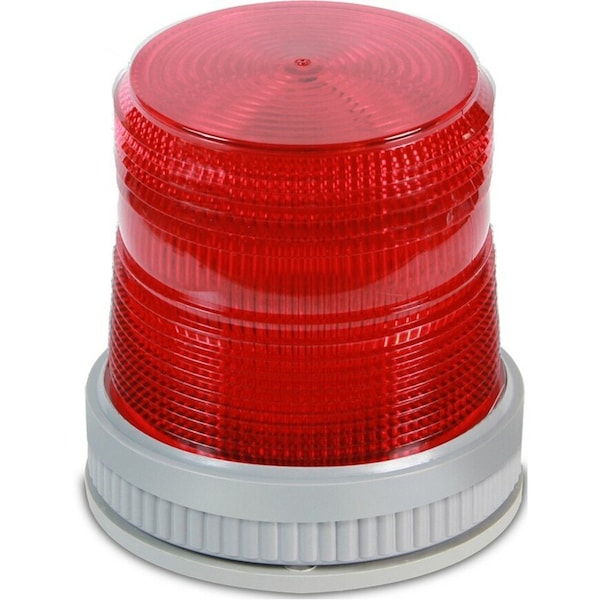

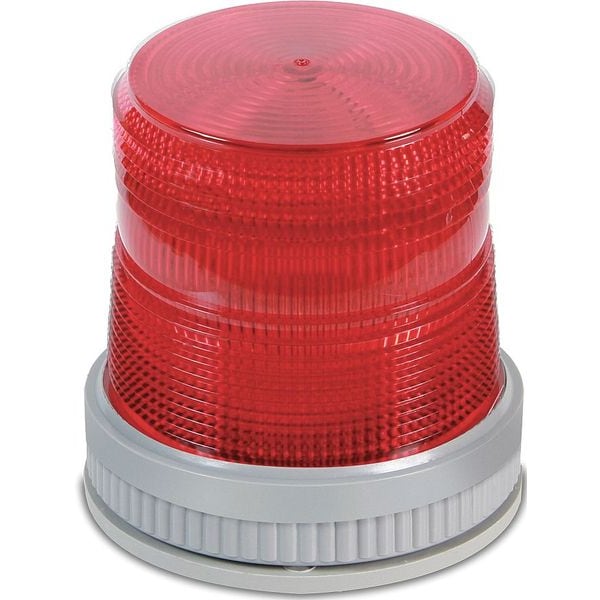

Warning Light, LED, 120VAC, Red, 65 FPM
| Item | Warning Light |
|---|---|
| Color | Red |
| Lamp Type | LED |
| Power Source | Wire |
| Lamp Life | 148,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 65 |
| Height | 4-3/4 in |
| Housing Material | Glass Reinforced Thermoplastic Polyester Resin |
| Standards | cUL, UL |
| Diameter | 3-3/4 in |
| Features | Shatter Resistant |
| Current Drawn | 0.108A AC |
| Mounting | Surface |
| Rating | UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III |
| For Use With | Marine, Outdoor, Industrial |
| Lens Design | Fresnel |
| Width | 3.8 in |
| Depth | 3.8 in |
| Product Type | Warning Light |
| Voltage | 120 V AC |
| Material | Polyethylene Terephthalate, Glass Reinforced Thermoplastic Polyester Resin |
| Connection Type | Wire Leads |
| Tower Light Color | Red |
| Audible Alarm Type | Visual |
| NEMA Rating | NEMA 4X |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Overall Diameter | 3-3/4 in |
| For Hazardous Location | Class I, Division 2, Class II, Division 2, Class III |
| Requires Base | Base Required |
| Mounting Style | Surface Mount |
| Footprint Width | Not Applicable |
| Lamp Color | Red |
| Operating Temperature - Maximum | 212 deg F |
| Includes Mounting Hardware | No Mounting Hardware |
| Lead Length | 18 in |
| Footprint Shape | Not Applicable |
| Lens Color | Red |
| Light Source | LED |
| Number of Batteries | Not Applicable |
| Housing Color | Gray |
| Footprint Length | Not Applicable |
| IO-Link Compatibility | Not IO-Link Compatible |
| Runtime | Not Applicable |
| Lifespan | 148,000 hr |
| Vibration | No Vibration |
| Operating Current | 0.108 A |
| Overall Depth | 4-3/4 in |
| Footprint Diameter | 3-3/4 in |
| Includes Batteries | Not Applicable |
| Mounting Mechanism | NPT |
| Operating Temperature - Minimum | -31 deg F |
| Control Protocol | Direct Wire |
| For Location | Indoor, Outdoor |
| Light Operating Mode | Flashing, Steady |
| Battery Size | Not Applicable |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
