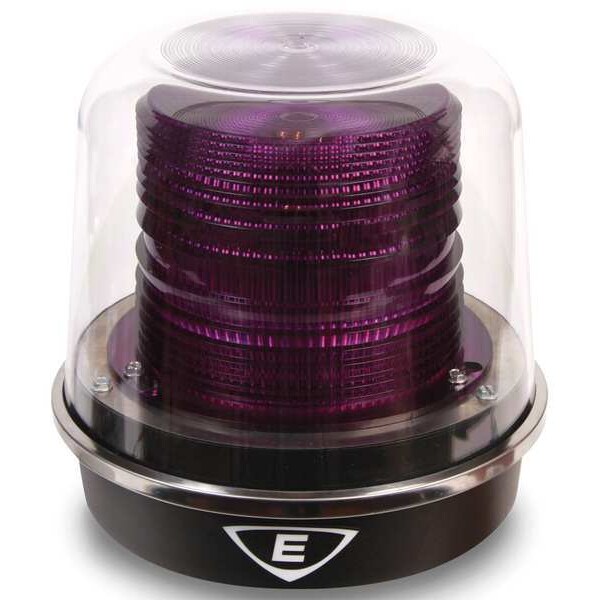

Warning Light, LED, Magenta, 12VDC, 24VACDC
| Item | Warning Light |
|---|---|
| Color | Magenta |
| Lamp Type | LED |
| Power Source | Wire |
| Lamp Life | 148,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 65, 85, 120, 460, 480, 750, 1,000 |
| Height | 8-1/4 in |
| Housing Material | Polycarbonate |
| Standards | cULus |
| Diameter | 7-3/4 in |
| Features | For Use in High Noise Areas Where Ear Protection is Worn or Audible Signals May Not Be Heard, Impact Resistant |
| Lens Design | Fresnel |
| Current Drawn | 0.700A AC, 0.550A DC |
| Operating Temp. | -31 to 150.8 deg F |
| Mounting | Conduit |
| Rating | IP66, NEMA 4X |
| Product Type | Warning Light |
| Connection Type | Wire Leads |
| NEMA Rating | NEMA 4X |
| Mounting Mechanism | 3/4 in FNPT |
| Mounting Style | Surface Mount |
| Lens Color | Magenta |
| IP Rating | IP66 |
| Light Operating Mode | Flashing, Steady |
| Light Source | LED |
| Overall Depth | 7-3/4 in |
| Requires Base | Base Not Required |
| Overall Diameter | 8-1/4 in |
| Lamp Color | White |
| Footprint Width | Not Applicable |
| Control Protocol | Direct Wire |
| Lens Shape | Dome |
| Footprint Length | Not Applicable |
| Vibration | No Vibration |
| Housing Color | Black |
| Footprint Diameter | 8-1/4 in |
| Overall Length | Not Applicable |
| Operating Current | 0.550 A @ 24V AC/DC, 0.700 A @ 12V DC |
| Operating Temperature - Minimum | -31 deg F |
| Footprint Shape | Not Applicable |
| IO-Link Compatibility | Not IO-Link Compatible |
| Includes Mounting Hardware | No Mounting Hardware |
| Number of Batteries | Not Applicable |
| For Location | Indoor, Outdoor |
| Overall Width | Not Applicable |
| Operating Temperature - Maximum | 151 deg F |
| Includes Batteries | Not Applicable |
| Runtime | Not Applicable |
| Lifespan | 148,000 hr |
| Battery Size | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
