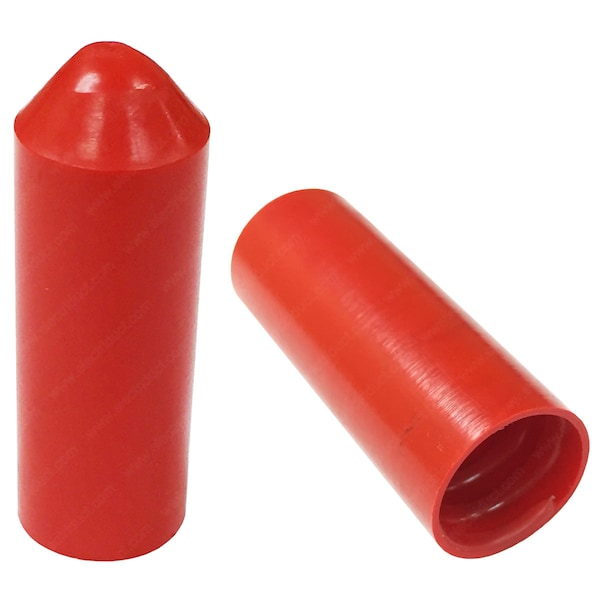

UV Rated Heat Shrink End Caps- 3/8"- Red
| Item | Heat Shrink End Cap |
|---|---|
| Shrink Ratio | 2:1 |
| Shrink Tubing I.D. Before Shrinking | 0.39 in |
| Color | Red |
| Temp. Range | -55 to 110 deg C |
| Min. Shrink Temp. | 120 to 135°C |
| For Use With | Heat Shrink Tubing |
| Features | Adhesive Lining, UV Rated |
| Shrink Tubing Length | 1.34 in |
| I.D. After Shrinking | 0.16 in |
| Wall Thickness | 0.08 in |
| Peel Strength | 4 N/cm |
| Dielectric Strength | 15 kV/mm |
| Softening Point | 85°C |
| Elongation at Break | 400% |
| Nominal Size | 3/8 in |
| Tensile Strength | 14 MPa |
| Package Quantity | 1 |
