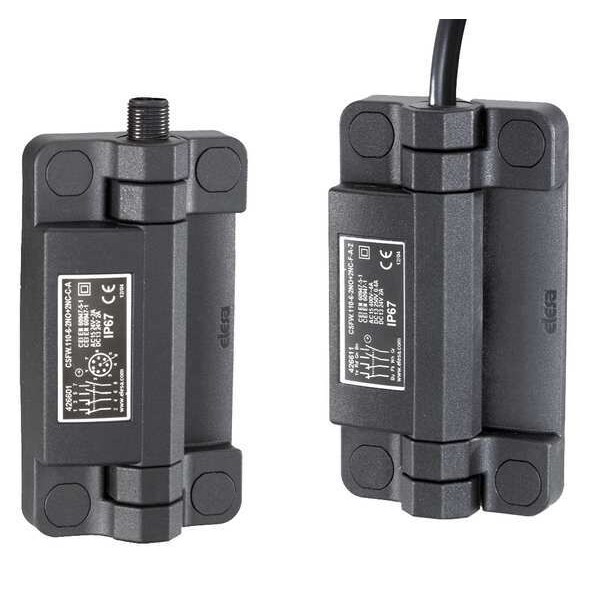

110mmH Hinged Safety Interlock Switch
| Door Leaf Height | 110 mm |
|---|---|
| Door Leaf Thickness | 12 mm |
| Holes per Leaf | 2 |
| Load Capacity | 2800 N |
| Material | Technopolymer |
| Mounting | Wall Mount |
| Range of Motion | 180 deg |
| Features | Built-in Microswitch; 1NO/3NC; 2m Cable Length |
| Item | Hinged Safety Interlock Switch |
| DC Contact Rating | 2 A @ 24 V |
| Operating Temp. Range | -68 Degrees to 176 Degrees F |
| Cable Type | CSA, UL STYLE 2587 8 X 22 AWG |
| Holes | With |
| Width | 2.36 in |
| Standards | RoHS |
| Port Location | Bottom Output |
| IP Rating | IP66, IP67 |
| Cable Length | 2 m |
| Contact Form | 1NO/3NC |
| Depth | 0.98 in |
| NEMA Rating | 6 |
| AC Contact Rating | 0.75 A @ 240 V, 1.5 A @ 120 V |
| Height | 4.33 in |
| Termination | 8 Pin Connector |
| Overall Width | 2.36 in |
| Series | CFSW |
| Operating Temperature - Minimum | -20 Degrees F |
| Overall Height | 4.33 in |
| Overall Depth | 0.98 in |
| NEMA Enclosure Rating | 6 |
| Operating Temperature - Maximum | 80 Degrees F |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
