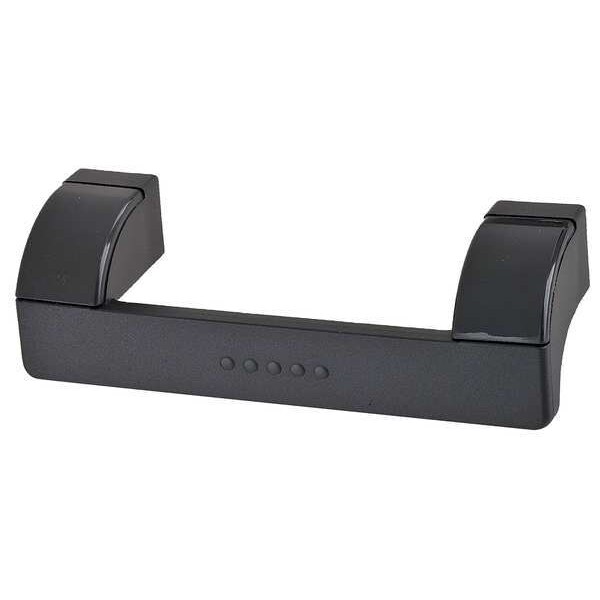

Chemical Resistant Wing Handle, Polyamide
| Material | Technopolymer |
|---|---|
| Finish | Matte |
| Projection | 1-1/4 in |
| Grip Thickness | 9/32 in |
| Hardware | Not Included |
| Grip Length | 2-29/32 in |
| Grip Height | 1-21/64 in |
| Load Rated (Y/N) | N |
| Operating Temp. | -30 to 110 deg F |
| Overall Width | 1-5/16 in |
| Item | Pull Handle |
| Overall Length | 4-1/2 in |
| Mounting Hole Center to Center | 3-11/16 in |
| Grip Dia. | 1/4 in |
| Mounting Type | Unthreaded Through Holes |
| Color | Black |
| Screw Size | 0.26 in |
| Degree Offset | Not Applicable |
| Cutout Width | Not Applicable |
| For Use With | Single-Leaf Doors |
| Thread Depth | 7/16 in |
| Product Type | Pull Handle |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Handle Shape | Wing |
| Projection - Folded | Not Applicable |
| Load Capacity - Perpendicular | 201 lbf |
| Cutout Depth | Not Applicable |
| Resistance Properties | Chemical Resistant |
| Load Rating | Load Rated |
| Count | 1 |
| Operating Temperature - Maximum | 110 deg F |
| Folding Type | Fixed |
| Includes Hardware | Hardware Not Included |
| Grip Width | 1-11/32 in |
| Mounting Hole Center to Center - Vertical | Not Applicable |
| ANSI/BHMA Finish | Satin Thermoplastic |
| Operating Temperature - Minimum | -30 deg F |
| Number of Mounting Holes | 2 |
| Cutout Length | Not Applicable |
| Grip Shape | Flat |
| Grip Offset | 1-1/32 in |
| Projection Type | Non-Recessed |
| Grip Diameter | Not Applicable |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
