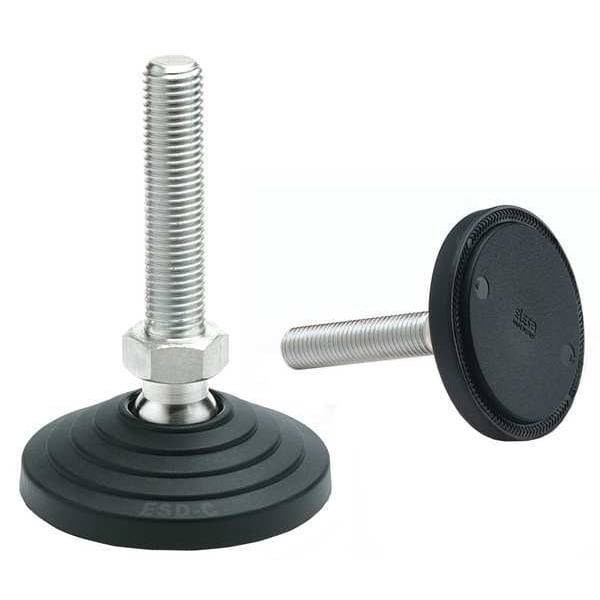

Leveling Foot, Gliding, M22, 1-2/11 in Base
| Item | Male-End Leveling Mount |
|---|---|
| Height | 5.16 in |
| Load Capacity | 14,000 N |
| Thread Size | M12 |
| Leveling Mount Type | Swiveling Stud |
| Base Dia. | 2.36 in |
| Material | Steel |
| Finish | Zinc-Plated |
| Bolt Length | 98 mm |
| Base | Conductive Glass-Fiber Reinforced Techopolymer |
| Hex | 27/49 in |
| Includes | No Slip Disk |
| Construction | Steel |
| Base Material | Technopolymer |
| Base Diameter | 60 mm |
| Overall Height | 131 mm |
| Base Thickness | 24 mm |
| Connection Type | Threaded Stud |
| Electrostatic Discharge | Yes |
| Swivel Angle | 15 deg |
| Overall Length | Not Applicable |
| Base Shape | Round |
| Overall Width | Not Applicable |
| Bolt Material | Steel |
| Hex Size | 0.55 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
