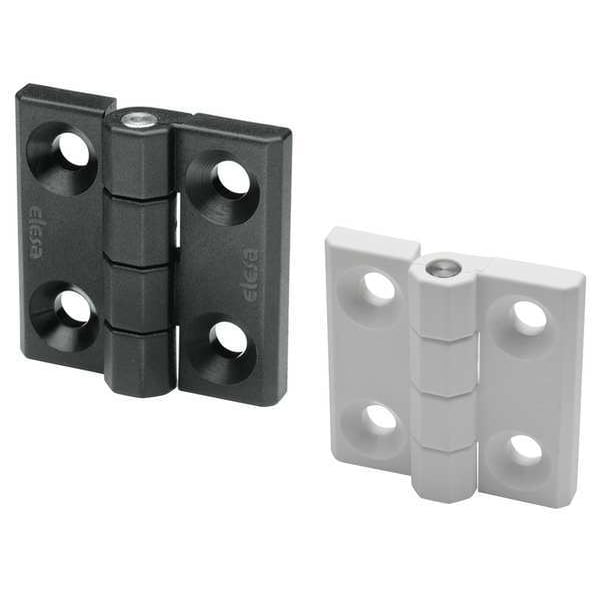

Pivot Hinge, Technopolymer, Full Surface Mounting, 7/16 in Leaf W x 1 3/16 in Leaf H, matte
| Item | Pivot Hinge |
|---|---|
| Material | Technopolymer |
| Finish | matte |
| Load Capacity | 225 lb |
| Ligature Resistant | No |
| Range of Motion | 270 deg |
| Orientation | Non Handed |
| Mounting | Full Surface |
| Bearing Type | Sleeve |
| Holes per Leaf | 2 |
| Frame Leaf Width | 7/16 in |
| Frame Leaf Height | 1-3/16 in |
| Frame Leaf Thickness | 0.14 in |
| Door Leaf Width | 1-3/16 in |
| Door Leaf Height | 1-3/16 in |
| Door Leaf Thickness | 0.14 in |
| Hardware | Not included |
| Holes | With |
| Features | Pass-Through Holes for Countersunk Head Screws; 304 Stainless Steel Rotating Pin |
| Pin Type | Nonremovable |
| Pin Dia. | 1/8 in |
| Corners | Square |
| Pin Material | Stainless Steel |
| Overall Width | 1-3/16 in |
| Overall Knuckle Height | 1/4 in |
| Resistance Properties | Chemical-Resistant |
| Includes Holes | Holes Included |
| Range of Motion - Maximum | 270 deg |
| Mounting Style | Full Surface |
| Includes Hardware | Hardware Not Included |
| ANSI/BHMA Finish | Not Applicable |
| Pin Diameter | 1/8 in |
| Corner Type | Square |
| Number of Holes per Leaf | 2 |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
