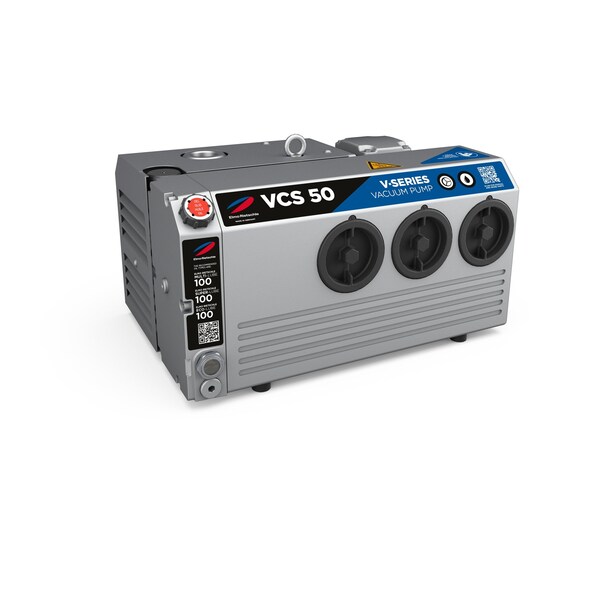

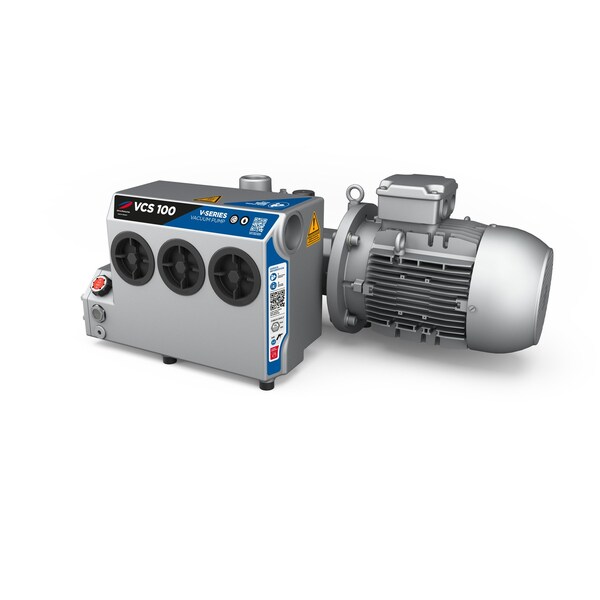

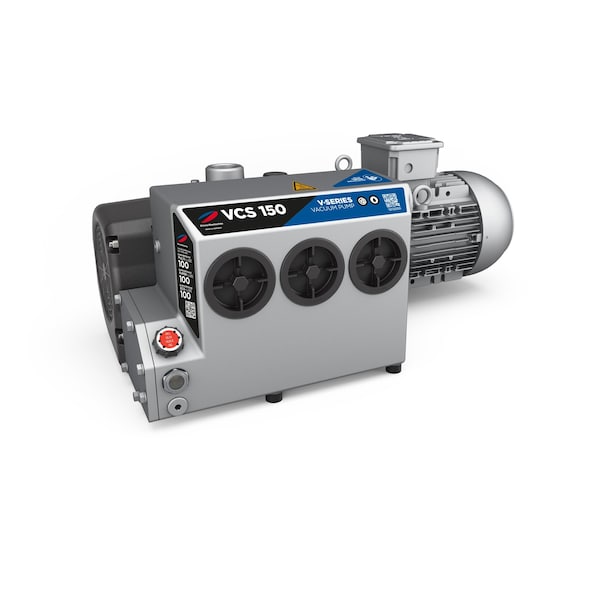

Vacuum Pump, 5 hp, 230/460V AC, 30.9" L
| Item | Vacuum Pump |
|---|---|
| Voltage | 230/460V AC |
| Phase | Three |
| Weight | 213.8 lb |
| Overall Length | 30.9 in |
| Runs Dry | Yes |
| Inlet Type | NPT |
| Series | V-VCS |
| Outlet Hose/Tube ID | Not Applicable |
| Rotor Material | Carbon Steel |
| Outlet Gender | Female |
| Duty Cycle | Continuous |
| Pump Type | Rotary Vane Vacuum |
| Maximum Operating Temperature | 104 deg F |
| Maximum Vacuum | 0.5 mbar |
| Overall Width | 15.9 in |
| Outlet Type | NPT |
| Seal Type | Not Applicable |
| Enclosure Type | TEFC |
| Wetted Material | Not Applicable |
| For Chemical Type | Not Applicable |
| Sound Level | 67 dBA |
| Self-Priming | Not Applicable |
| Current Rating | 13/6.5 A |
| Outlet Hose/Tube OD | Not Applicable |
| Maximum Head | Not Applicable |
| Maximum Viscosity | Not Applicable |
| Outlet Size | 2 in |
| Frequency | 50 Hz, 60 Hz |
| Maximum Speed | Not Applicable |
| Valve Type | Vacuum Non-Return, Ballast |
| Overall Height | 12.83 in |
| Magnetic Drive | No |
| Maximum Operating Pressure | 500 mbar |
| Lead-Free | Not Applicable |
| Shaft Diameter | Not Applicable |
| Minimum Operating Temperature | 53.6 deg F |
| Maximum Discharge Pressure | 29.91 inHg |
| Application | Drying, Hold-Down, Packaging, Pick & Place, Pneumatic Conveying |
| Inlet Gender | Female |
| Shaft Material | Not Applicable |
| Maximum Self-Priming Distance | Not Applicable |
| Thermal Protection | None |
| Vane Material | Composite |
| Includes | Fine Mesh Filter, Gas Ballast Valve, Oil Separator, Oil/Air Heat Exchanger, Protective Cover, Vacuum Non-Return Valve on Suction Side |
| Inlet Size | 1 1/2 in |
| Filter Type | Fine Mesh |
| Oil Capacity | 3 L |
| Seal Material | Not Applicable |
| Submersible | No |
| Standards | UL Listed |
| Finish | Paint |
| Output Power | 5 hp |
| Enclosure Rating | Not Applicable |
| Bearing Type | Slide |
| Maximum Flow Rate | 212 cfm |
| Maximum Fluid Temperature | Not Applicable |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
