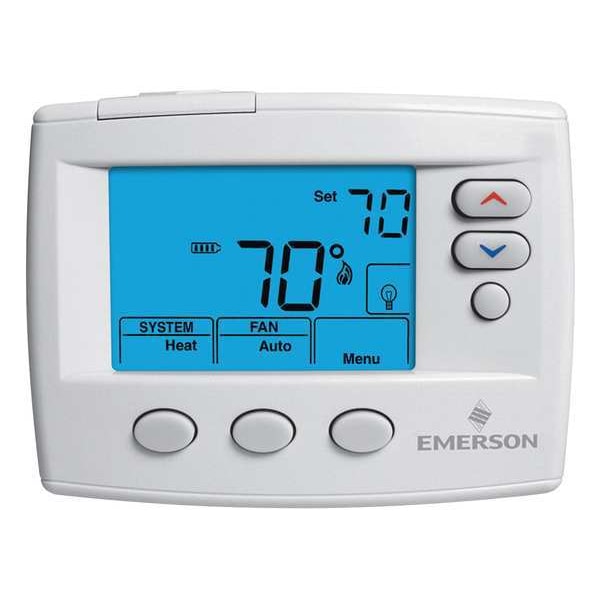

Thermostat, 1 H, 1 C, Battery, 24VAC
| Item | Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 1 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 45 to 99 deg F |
| System Switching | Heat-Off |
| Stages Cool | 1 |
| Height | 5-1/2 in |
| Width | 3-1/8 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery |
| 750mV Compatible | Yes |
| For Use With | Heat Only |
| Humidification Control | No |
| Filter Indicator | No |
| Display | Digital |
| Fan Switching | Auto-on |
| Terminal Designations | RH,W |
| Automatic Changeover | No |
| Battery Backup | No |
| Temporary Temperature Hold | No |
| Low Battery Indicator | No |
| Batteries Included | Yes |
| Footnotes | 3, 4 |
| Temporary Program Override | No |
| Temperature Limiting | No |
| Remote Sensing Capability | No |
| Key Pad Lockout | No |
| Dehumidification Control | No |
| Programmable Fan | No |
| Includes | 2 AA Batteries |
| Depth | 1-1/8 in |
| Mounting | Vertical |
| Display Type | Digital |
| Control Type | Slide Switch |
| Stages | 1H Conventional |
| Type | Digital Nonprogrammable Heat Only |
| Housing Color | White |
| Temperature Scale | Fahrenheit, Celsius |
| Number of Heating Stages - Conventional System | 1 |
| Mounting Direction | Vertical |
| Overall Depth | 1-1/8 in |
| Minimum Operating Humidity | 0 % |
| Mounting Direction/Shape | Vertical |
| Operating Humidity Range | 0% to 90% |
| Filter Change Reminder | No |
| Maximum Operating Temperature | 150 deg F |
| Maximum Operating Humidity | 90 % |
| Fan Settings | Auto |
| Number of Heating Stages - Heat Pump System | 0 |
| Overall Height | 5-5/16 in |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 3-3/16 in |
| Operating Temperature Range | -40 to 150 deg F |
| Temperature Differential | 0.8 Degrees to 1.5 Degrees F |
| Thermostat Type | Low Voltage |
| Number of Cooling Stages - Heat Pump System | 0 |
| Number of Cooling Stages - Conventional System | 0 |
| System/Fan Settings | Auto, On-Off |
| Number of Zones | 1 |
| Includes Positive Off | Yes |
| Backlit Type | Press Button |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt |
| Amperage | 2.5 A |
| Application | Heat Only |
| Minimum Control Temperature | 45 deg F |
| Differential Type | Adjustable |
| Shape | Rectangle |
| Millivolt Compatible | Yes |
| Programming Capability | Not Programmable |
| Digit Size | Standard |
| Electrical Connection Type | Plug-In |
| System Settings | On-Off |
| Housing Material | Plastic |
| Temperature Control Range | 45 to 99 deg F |
| Maximum Control Temperature | 90 deg F |
| Battery Type | AAA Batteries |
| Frequency | 50 Hz, 60 Hz |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
