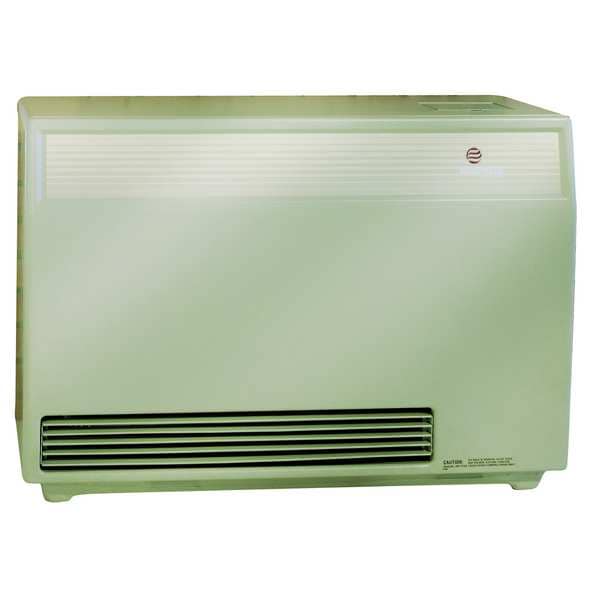

Gas Freestanding Floor Heater, Natural Gas, Direct Vent Vent Type, Fan Forced Convection
| Item | Gas Freestanding Floor Heater |
|---|---|
| Heater Type | Fan Forced Counterflow |
| Gas Type | NG |
| BtuH Input | 20,000 |
| BtuH Output | 16,300 |
| Ignition Type | Hot-Surface |
| Air Flow | 350 cfm |
| Heater Voltage | 120 V |
| Height | 26 in |
| Width | 37 in |
| Floor to Center of Vent | 10-1/2 in |
| Vent | 3-1/2 in |
| Includes | Over Temperature Safety Limit Switch |
| Number of Speeds | 1 |
| Built-In Features | Auto Shut Off for Main Burner, Over Temp Safety Switch |
| Gas Connection | 1/2 in NPT |
| Finish | Powder Coated |
| Depth | 15-3/4 in |
| Wall Type | Exterior |
| Amps AC | Less than 1 |
| Standards | ANSI Z223.3, CSA 2.32, CSA Z21.86, NFPA 54 |
| Vent Type | Direct Vent |
| Manufacturers Warranty Length | 10 yr Limited on Combustion Chamber, 5 yr Parts, 2 yr Labor |
| Overall Width | 37 in |
| Features | Automatic Shut-Off for Main Burner |
| Overall Height | 26 in |
| Safety Features | Automatic Shut-Off of Main and Pilot Gas |
| Vent Diameter | 3-1/2 in |
| Housing Color | Beige |
| Fuel Type | Natural Gas |
| Cabinet Style | Solid Face |
| Housing Material | Steel |
| Air Temperature Rise | 150 |
| Housing Finish | Powder Coated |
| Frequency | 50/60 Hz |
| Fuel Consumption | 0.85 gph |
| Heating Capacity Input | 20,000 BtuH |
| Heating Method | Fan Forced Convection |
| Connection Type | NPT |
| Air Flow Direction | Horizontal |
| Connection Size | 1/2 in |
| Product Type | Free-Standing Vented Gas Floor Heater |
| Overall Dimensions - H x W x D | 26 in x 37 in x 15-3/4 in |
| Heating Capacity Output | 16,300 BtuH |
| Thermostat Included | Unit-Mounted |
| Overall Depth | 15-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
