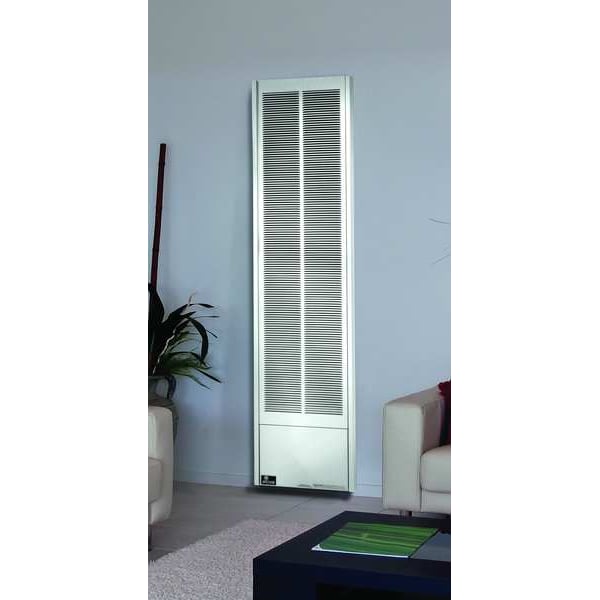

Recessed-Mount Gas Wall Heater, Propane, Top Vent Vent Type, Gravity Convection
| Item | Recessed-Mount Gas Wall Heater |
|---|---|
| Heater Type | Gravity |
| Gas Type | LP |
| BtuH Input | 50,000 |
| BtuH Output | 42,000 |
| Ignition Type | Standing Pilot |
| Air Flow | 75 cfm |
| Heater Voltage | 120 V |
| Height | 66-1/8 in |
| Width | 16 in |
| Vent Type | Top Vent |
| Wall Type | Double |
| Built-In Features | Removable Panels for Easy Cleaning |
| Wall Opening Depth | 4 in |
| Manufacturers Warranty Length | 10 yr. Combustion Chamber, 1 yr. All Other Parts |
| Number of Speeds | 0 |
| Finish | Powder Coated |
| Gas Connection | 1/2 in NPT |
| Wall Opening Width | 14-1/2 in |
| Wall Opening Height | 62-1/4 in |
| Standards | ANSI, CSA |
| Depth | 6 in |
| Vent | 4 in |
| Includes | Heating Appliance Only |
| Floor to Center of Vent | 66-1/8 in |
| Gas Connection Size | 1/2 in |
| Venting | Vented |
| Housing Color | White |
| Ignition Type/Ignition Power Source | Standing Pilot, Match Lit |
| Vent Diameter | 4 in |
| Air Flow Direction | Vertical |
| Maximum Amperage | 5 A |
| Mounting Location | Wall |
| Vent Shape | Oval |
| Thermostat Included | No |
| Fuel Consumption | 2.25 gph |
| Number of Settings | 1 |
| Frequency | 50 Hz, 60 Hz |
| Ignition Power Source | Match Lit |
| Rough-In Width | 14-1/2 in |
| Housing Finish | Powder Coated |
| Housing Material | Steel |
| Overall Dimensions - H x W x D | 66-1/8 in x 16 in x 6 in |
| Heating Capacity Input | 50,000 BtuH |
| Fuel Type | Propane |
| Heating Capacity Output | 42,000 BtuH |
| Gas Connection Type | NPT |
| Rough-In Depth | 4 in |
| Rough-In Dimensions - H x W x D | 62-1/4 in x 14-1/2 in x 4 in |
| Air Temperature Rise | 260 Degrees F |
| Overall Depth | 6 in |
| Rough-In Height | 62-1/4 in |
| Features | Removable Panels for Easy Cleaning |
| Overall Width | 16 in |
| Overall Height | 66-1/8 in |
| Heating Method | Gravity Convection |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
