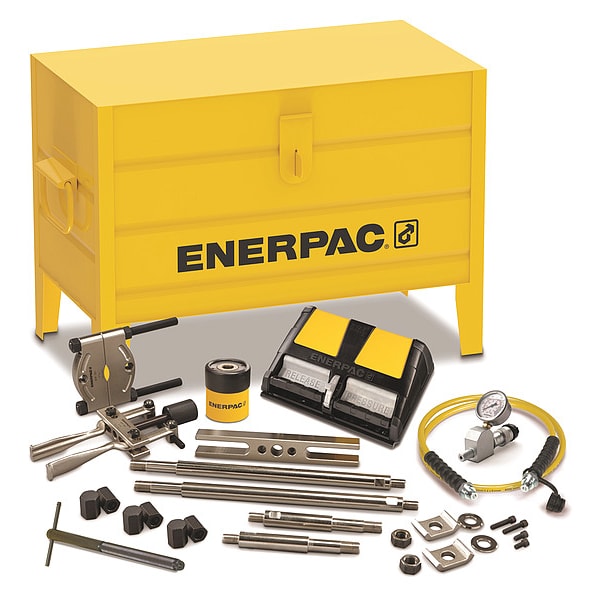

BHP162A, 7 Ton, Hydraulic Cross Bearing Puller Set with Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 7 ton |
| Jaw Reach | 14.06 in |
| Application | For Pushing or Pulling |
| Puller Model Number | 30T927 |
| Max. Pressure | 10,000 psi |
| Weight | 52 lb |
| Max. Jaw Spread | 10.24 in |
| Max. Reach | 14.06 in |
| Screw Size | 3/4"-16 UNF |
| Cylinder Nominal Capacity | 7 ton |
| Pump Model Number | 2LML7 |
| Includes | Air Pump, Bearing Cup Puller, Bearing Separator, Cross Bearing Puller, Cylinder, Gauge Adaptor, Hose, Pressure Fitting, Pressure Gauge, Storage Case |
| Stroke Length | 1 in |
| Number of Jaws | 2 |
| Min. Spread (In.) | 4.2 |
| Min. Jaw Spread | 4.2 in |
| Max. Spread (In.) | 10.24 |
| Capacity with Attachments | 3.5 ton |
| Lower Leg Ends | 3/8"-18 x 1 |
| Leg 2 Length | 14.2 in |
| Leg 1 Length | 4.13 in |
| Pump Power Source | Air Pump |
| Adjusting Screw Length | 15-3/4 in |
| Upper Leg Ends | 3/4"-16 x 1 |
| Series | BHP |
| Stroke | 1 in |
| Maximum Operating Pressure | 10,000 psi |
| Package Quantity | 1 |
