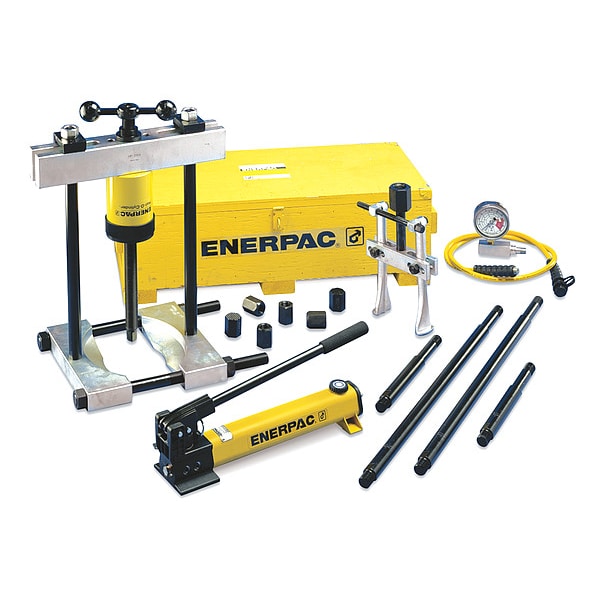

BHP361G, 18 Ton, Hydraulic Cross Bearing Puller Set with Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 18 ton |
| Jaw Reach | 27.95 in |
| Application | For Pushing or Pulling |
| Min. Spread (In.) | 7.09 |
| Max. Reach | 27.95 in |
| Includes | Bearing Cup Puller, Bearing Separator, Cross Bearing Puller, Gauge Adaptor, Hand Pump, Hollow Plunger Cylinder, Hose, Pressure Gauge, Storage Case, Threaded Hollow Saddle |
| Cylinder Nominal Capacity | 18 ton |
| Pump Model Number | 6W462 |
| Number of Jaws | 2 |
| Weight | 229 lb |
| Min. Jaw Spread | 7.09 in |
| Puller Model Number | 30Y656 |
| Max. Pressure | 5,000 psi |
| Max. Jaw Spread | 17.32 in |
| Screw Size | 1-1/4"-7 UNC |
| Capacity with Attachments | 9 ton |
| Stroke Length | 2-1/2 in |
| Max. Spread (In.) | 17.32 |
| Maximum Operating Pressure | 5,000 psi |
| Leg 1 Length | 8.07 in |
| Leg 3 Length | 27.95 in |
| Series | BHP |
| Lower Leg Ends | 1"-14 UNS |
| Leg 2 Length | 18.11 in |
| Adjusting Screw Length | 31.1 in |
| Pump Power Source | Hand Pump |
| Upper Leg Ends | 1"-14 UNS |
| Stroke | 2-1/2 in |
| Package Quantity | 1 |
