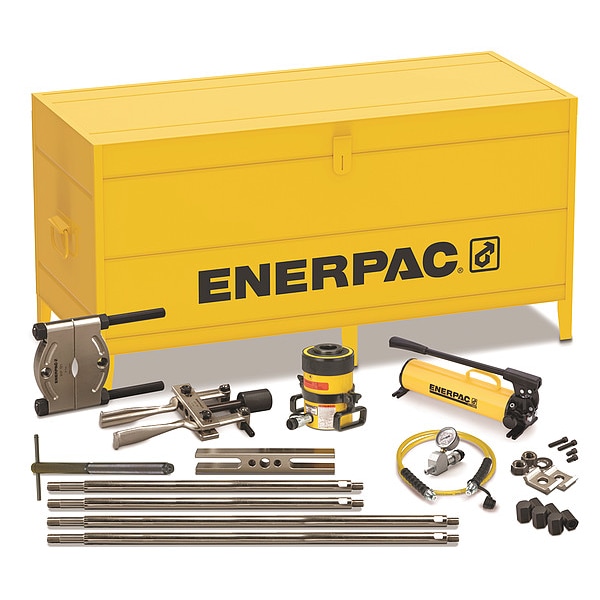

BHP561G, 25 Ton, Hydraulic Cross Bearing Puller Set with Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 25 ton |
| Jaw Reach | 34 in |
| Application | For Pushing or Pulling |
| Includes | Bearing Cup Puller, Bearing Separator, Cross Bearing Puller, Gauge Adaptor, Hand Pump, Hollow Plunger Cylinder, Hose, Pressure Gauge, Storage Case, Threaded Hollow Saddle |
| Stroke Length | 3 in |
| Max. Spread (In.) | 22.83 |
| Max. Pressure | 5,000 psi |
| Screw Size | 1-5/8"-5.5 UNS |
| Pump Model Number | 4Z481 |
| Max. Jaw Spread | 22.83 in |
| Puller Model Number | 30Y664 |
| Weight | 329 lb |
| Min. Spread (In.) | 8.66 |
| Max. Reach | 34 in |
| Capacity with Attachments | 12.5 ton |
| Number of Jaws | 2 |
| Cylinder Nominal Capacity | 25 ton |
| Min. Jaw Spread | 8.66 in |
| Upper Leg Ends | 1-1/4"-12 UNF |
| Lower Leg Ends | 1-1/4"-12 UNF |
| Leg 1 Length | 23.98 in |
| Adjusting Screw Length | 38.39 in |
| Leg 2 Length | 34.02 in |
| Series | BHP |
| Maximum Operating Pressure | 5,000 psi |
| Pump Power Source | Hand Pump |
| Stroke | 3 in |
| Package Quantity | 1 |
