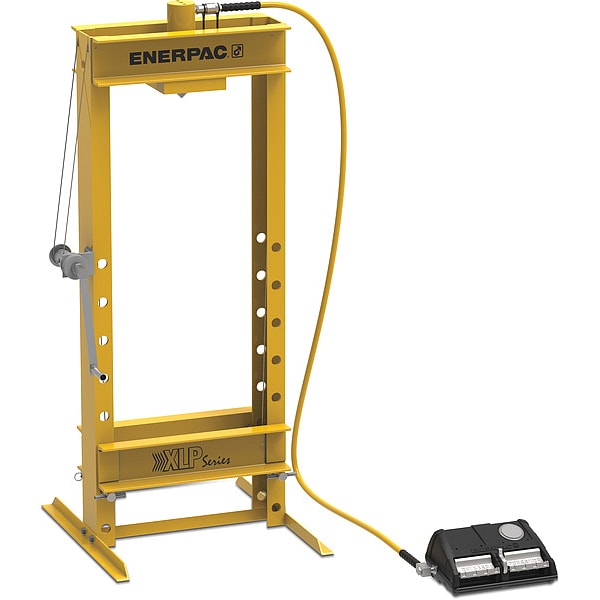

Hydraulic Press, Air, Yellow
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 25 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 6-1/4 in |
| Pump Type | Air |
| Base Length | 27-61/64 in |
| Base Width | 28 in |
| Overall Height | 67-1/8 in |
| Pump | Mfr. No. XA11G |
| Includes | General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Pump |
| Cylinder Type | Single Acting |
| Reservoir Capacity | 55 cu in |
| Application | Pressing Bearings |
| Overall Width | 28 in |
| Item | Hydraulic Press |
| Overall Depth | 28 in |
| Operating Pressure | 10,000 psi |
| Voltage | Not Applicable |
| Features | Horizontal Cylinder Adjustment Enables Flexible Load Placement, Welded Frame |
| Phase | Not Applicable |
| Adjustable Bed | Adjustable |
| Min. Ram-to-Table Distance | 14-1/16 in |
| For Use With | Single Acting Cylinder |
| Stroke | 6-1/4 in |
| Max. Ram Advance Speed | 0.39 in/sec |
| Table Length | 24-51/64 in |
| Max. Ram Press Speed | 0.05 in/sec |
| Overall Length | 27-61/64 in |
| Max. Ram-to-Table Distance | 47-11/16 in |
| Color | Yellow |
| Width Between Table Channels | 5-33/64 in |
| Distance Between Uprights | 20-1/8 in |
| Compatible Mfr. Model Number | RC256, XA11G |
| Pressure | 10,000 psi |
| Maximum Vertical Daylight | 47.68 in |
| Power Source Type | Air |
| Series | XLP |
| Maximum Bed Width | 20.08 in |
| Hydraulic Hose Length | 10 ft |
| Operation | Manual |
| Cylinder Model Number | RC256 |
| Pump Model Number | XA11G |
| Required Air Pressure - Minimum | Not Applicable |
| Base Depth | 28 in |
| Motor Speed - Maximum | Not Applicable |
| Maximum Ram Press Speed | 0.05 in/sec |
| Press Bed Depth | 5-1/2 in |
| Horsepower | Not Applicable |
| Maximum Ram Advance Speed | 0.39 in/sec |
| Ram-to-Table Distance - Maximum | 47-5/8 in |
| Ram-to-Table Distance - Minimum | 14 in |
| Current | Not Applicable |
| Required Air Pressure - Maximum | Not Applicable |
| Press Bed Width | 20-1/8 in |
| Capacity | 25 ton |
| Package Quantity | 1 |
