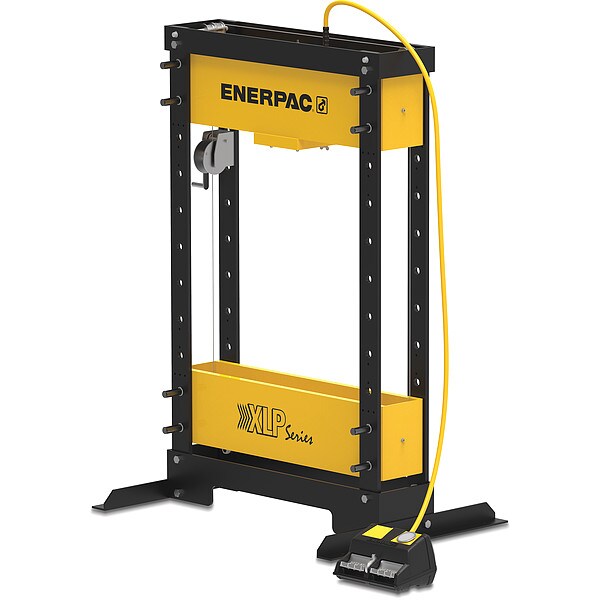

Hydraulic Press, Air, Yellow
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 50 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 6-1/4 in |
| Pump Type | Air |
| Base Length | 54-23/32 in |
| Base Width | 54-3/4 in |
| Overall Height | 77 in |
| Overall Depth | 39-3/8 in |
| Voltage | Not Applicable |
| Includes | Air Driven Hydraulic Pump, General Purpose Hydraulic Cylinder, Thermo-Plastic High Pressure Hydraulic Hose |
| Operating Pressure | 10,000 psi |
| Cylinder Type | Single Acting |
| Phase | Not Applicable |
| Reservoir Capacity | 122 cu in |
| Item | Hydraulic Press |
| Pump | Mfr. No. XA12G |
| Overall Width | 54-3/4 in |
| Features | Cut-Away in Lower Frame for Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement |
| Application | Pressing Bearings |
| Table Length | 38-63/64 in |
| For Use With | Single Acting Cylinder |
| Compatible Mfr. Model Number | RC506, XA12G |
| Width Between Table Channels | 9-29/64 in |
| Min. Ram-to-Table Distance | 8-17/64 in |
| Overall Length | 54-23/32 in |
| Distance Between Uprights | 39 in |
| Max. Ram-to-Table Distance | 37-51/64 in |
| Max. Ram Press Speed | 0.02 in/sec |
| Stroke | 6-1/4 in |
| Max. Ram Advance Speed | 0.18 in/sec |
| Pressure | 10,000 psi |
| Color | Yellow |
| Adjustable Bed | Adjustable |
| Series | XLP |
| Maximum Vertical Daylight | 37.8 in |
| Power Source Type | Air |
| Maximum Bed Width | 38.98 in |
| Base Depth | 39-3/8 in |
| Press Bed Depth | 9-1/2 in |
| Required Air Pressure - Minimum | Not Applicable |
| Cylinder Model Number | RC506 |
| Operation | Manual |
| Maximum Ram Press Speed | 0.02 in/sec |
| Ram-to-Table Distance - Minimum | 8-1/4 in |
| Ram-to-Table Distance - Maximum | 37-3/4 in |
| Required Air Pressure - Maximum | Not Applicable |
| Maximum Ram Advance Speed | 0.18 in/sec |
| Hydraulic Hose Length | 10 ft |
| Press Bed Width | 39 in |
| Current | Not Applicable |
| Motor Speed - Maximum | Not Applicable |
| Pump Model Number | XA12G |
| Horsepower | Not Applicable |
| Capacity | 50 ton |
| Package Quantity | 1 |
