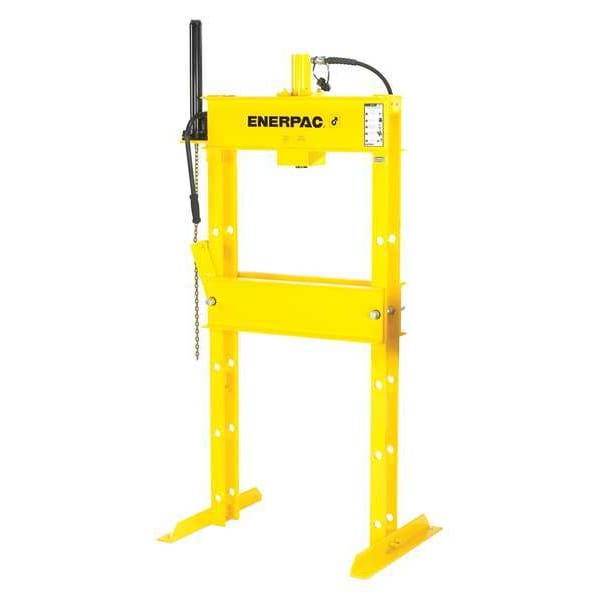

IPA10023, 100 Ton, H-Frame Hydraulic Press with RC10010 Single-Acting Cylinder and ZA4208MX Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 100 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 10 in |
| Pump Type | Air |
| Base Length | 52 in |
| Base Width | 51 in |
| Overall Height | 84-3/4 in |
| Application | Pressing Bearings |
| Item | Hydraulic Press |
| Total Height | 81 in |
| Hose Length | 6 ft |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose |
| Ram Travel | 19 in |
| Strokes to Extend Piston 1 In | 1.5 |
| Working Width | 52 in |
| Bed Height | 42.5" |
| Working Height | 81" |
| Cylinder Type | Single Acting |
| Features | Welded Frame |
| Reservoir Capacity | 1.75 gal |
| Total Width | 65 in |
| Cylinder | Mfr. No. RC-10010 |
| Pump | Mfr No. ZA4208MX |
| Adjustable Bed | Adjustable |
| For Use With | Cylinder Mfr. No. RC10010 |
| Overall Width | 51 in |
| Width Between Table Channels | 6-3/4 in |
| Stroke | 1-1/2 in |
| Overall Length | 36 in |
| Max. Ram Press Speed | 41.2 in/sec |
| Max. Ram-to-Table Distance | 42-1/2 in |
| Pressure | 10,000 psi, 100 tons |
| Max. Ram Advance Speed | 1.9 in/sec |
| Distance Between Uprights | 35 in |
| Overall Depth | 36 in |
| Phase | Not Applicable |
| Voltage | Not Applicable |
| Operating Pressure | 10,000 psi |
| Maximum Vertical Daylight | 41 in |
| Power Source Type | Air |
| Maximum Bed Width | 35 in |
| Series | IP |
| Current | Not Applicable |
| Cylinder Model Number | RC10010 |
| Maximum Ram Press Speed | 41.2 in/sec |
| Maximum Ram Advance Speed | 1.9 in/sec |
| Press Bed Depth | 5-3/4 in |
| Ram-to-Table Distance - Maximum | 41 in |
| Motor Speed - Maximum | Not Applicable |
| Base Depth | 36 in |
| Ram-to-Table Distance - Minimum | 5-1/2 in |
| Capacity | 100 ton |
| Pump Model Number | ZA4208MX |
| Horsepower | Not Applicable |
| Hydraulic Hose Length | 6 ft |
| Press Bed Width | 35 in |
| Operation | Air |
| Package Quantity | 1 |
