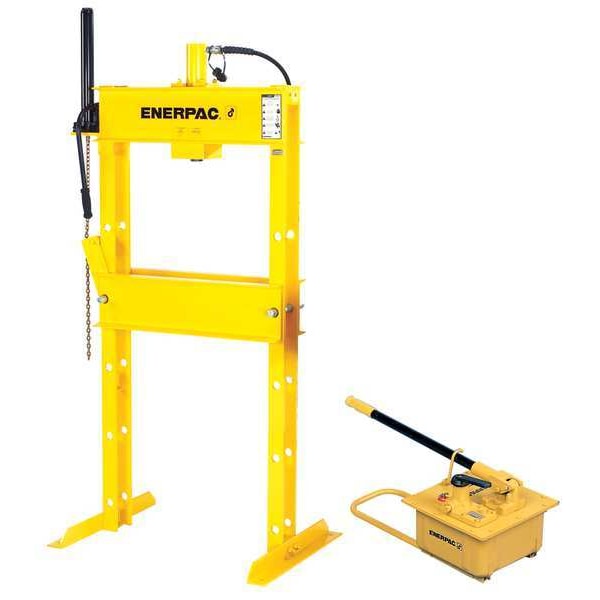

IPH10030, 100 Ton, H-Frame Hydraulic Press with RC10010 Single-Acting Cylinder and P462 Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 100 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 10 in |
| Pump Type | Manual |
| Base Length | 51 in |
| Base Width | 42-3/4 in |
| Overall Height | 84-3/4 in |
| Working Width | 36 in |
| Pump | Mfr. No. P-462 |
| Total Width | 67-1/2 in |
| Cylinder Type | Single Acting |
| Reservoir Capacity | 453 cu in |
| Features | Welded Frame |
| Item | Hydraulic Press |
| Strokes to Extend Piston 1 In | 3 |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump |
| Bed Height | 42.5" |
| Ram Travel | 6 in |
| Pump Handle Effort @ Rated Capacity (Lb.) | 110 |
| Total Height | 81 in |
| Hose Length | 6 ft |
| Working Height | 81" |
| Application | Pressing Bearings |
| Cylinder | Mfr. No. RC-10010 |
| Pressure | 10,000 psi, 100 tons |
| Stroke | 3 in |
| Width Between Table Channels | 6-3/4 in |
| Max. Ram Advance Speed | 3 in/sec |
| Max. Ram-to-Table Distance | 42-1/2 in |
| Overall Length | 36 in |
| For Use With | Cylinder Mfr. No. RC10010 |
| Max. Ram Press Speed | 70 in/sec |
| Adjustable Bed | Adjustable |
| Distance Between Uprights | 35 in |
| Overall Width | 42-3/4 in |
| Overall Depth | 36 in |
| Voltage | Not Applicable |
| Operating Pressure | 10,000 psi |
| Phase | Not Applicable |
| Maximum Vertical Daylight | 41 in |
| Series | IP |
| Maximum Bed Width | 35 in |
| Power Source Type | Manual |
| Required Air Pressure - Maximum | Not Applicable |
| Ram-to-Table Distance - Maximum | 41 in |
| Pump Model Number | P462 |
| Operation | Manual |
| Cylinder Model Number | RC10010 |
| Hydraulic Hose Length | 6 ft |
| Press Bed Width | 35 in |
| Maximum Ram Press Speed | 70 in/sec |
| Base Depth | 36 in |
| Press Bed Depth | 17-1/4 in |
| Current | Not Applicable |
| Horsepower | Not Applicable |
| Maximum Ram Advance Speed | 3 in/sec |
| Ram-to-Table Distance - Minimum | 5-1/2 in |
| Motor Speed - Maximum | Not Applicable |
| Required Air Pressure - Minimum | Not Applicable |
| Capacity | 100 ton |
| Package Quantity | 1 |
