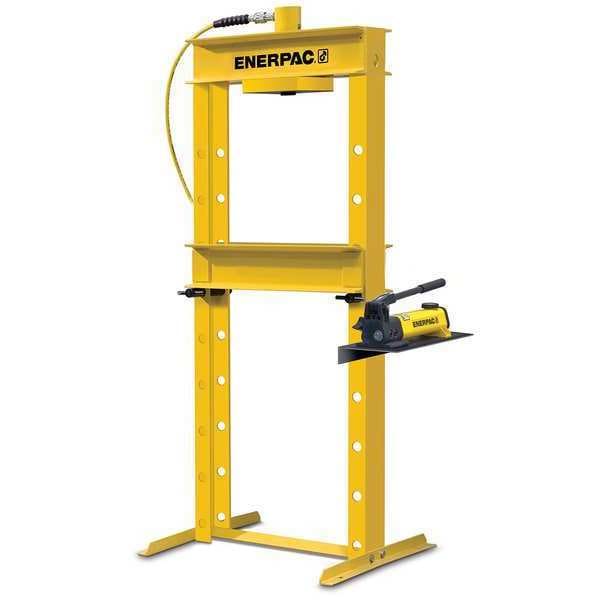

IPH1240, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and P392 Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 10 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 10 in |
| Pump Type | Manual |
| Base Length | 25 in |
| Base Width | 42-3/4 in |
| Overall Height | 52 in |
| Strokes to Extend Piston 1 In | 4 |
| Cylinder Type | Single Acting |
| Total Height | 52 in |
| Working Width | 18-1/2 in |
| Application | Pressing Bearings |
| Ram Travel | 6 in |
| Total Width | 25 in |
| Reservoir Capacity | 55 cu in |
| Pump Handle Effort @ Rated Capacity (Lb.) | 93 |
| Item | Hydraulic Press |
| Features | For Intermittent Use;Heavy Duty Welded Construction |
| Bed Height | 40" |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump |
| Pump | Mfr. No. P-392 |
| Working Height | 40" |
| Cylinder | Mfr. No. RC-1010 |
| Max. Ram Press Speed | 15 in/sec |
| Overall Length | 29-3/4 in |
| Pressure | 10 tons/10,000 psi |
| Max. Ram-to-Table Distance | 40 in |
| Overall Width | 42-3/4 in |
| Distance Between Uprights | 18-5/8 in |
| Max. Ram Advance Speed | 4 in/sec |
| Stroke | 10 in |
| Adjustable Bed | Adjustable |
| For Use With | Cylinder Mfr. No. RC1010 |
| Overall Depth | 36 in |
| Phase | Not Applicable |
| Voltage | Not Applicable |
| Operating Pressure | 10,000 psi |
| Maximum Vertical Daylight | 40 in |
| Power Source Type | Manual |
| Series | IP |
| Maximum Bed Width | 18.63 in |
| Ram-to-Table Distance - Minimum | 2-1/2 in |
| Press Bed Depth | 7-1/2 in |
| Operation | Manual |
| Current | Not Applicable |
| Motor Speed - Maximum | Not Applicable |
| Capacity | 10 ton |
| Horsepower | Not Applicable |
| Maximum Ram Press Speed | 15 in/sec |
| Base Depth | 36 in |
| Pump Model Number | P392 |
| Required Air Pressure - Maximum | Not Applicable |
| Maximum Ram Advance Speed | 4 in/sec |
| Hydraulic Hose Length | 6 ft |
| Required Air Pressure - Minimum | Not Applicable |
| Cylinder Model Number | RC1010 |
| Press Bed Width | 18-5/8 in |
| Ram-to-Table Distance - Maximum | 40 in |
| Package Quantity | 1 |
