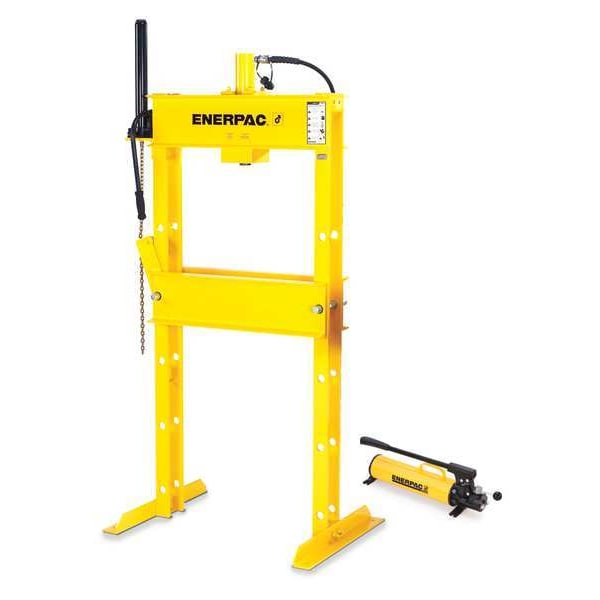

IPH3080, 30 Ton, H-Frame Hydraulic Press with RR3014 Double-Acting Cylinder and P84 Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 30 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 14 in |
| Pump Type | Manual |
| Base Length | 40 in |
| Base Width | 42-3/4 in |
| Overall Height | 89-1/4 in |
| Pump | Mfr. No. P-84 |
| Item | Hydraulic Press |
| Cylinder | Mfr. No. RR-3014 |
| Pump Handle Effort @ Rated Capacity (Lb.) | 77 |
| Total Width | 40 in |
| Total Height | 81 in |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump |
| Hose Length | 6 ft |
| Bed Height | 54.5" |
| Ram Travel | 10 in |
| Features | Welded Frame |
| Application | Pressing Bearings |
| Reservoir Capacity | 134 cu in |
| Strokes to Extend Piston 1 In | 7 |
| Working Width | 40 in |
| Cylinder Type | Double Acting |
| Working Height | 81" |
| Max. Ram Advance Speed | 7 in/sec |
| Stroke | 7 in |
| Overall Width | 42-3/4 in |
| Pressure | 10,000 psi, 30 tons |
| Adjustable Bed | Adjustable |
| For Use With | Cylinder Mfr. No. RR3014 |
| Max. Ram Press Speed | 34 in/sec |
| Overall Length | 30 in |
| Width Between Table Channels | 4 in |
| Distance Between Uprights | 29 in |
| Max. Ram-to-Table Distance | 54-1/2 in |
| Voltage | Not Applicable |
| Overall Depth | 36 in |
| Phase | Not Applicable |
| Operating Pressure | 10,000 psi |
| Series | IP |
| Maximum Bed Width | 29 in |
| Maximum Vertical Daylight | 54-1/2 in |
| Power Source Type | Manual |
| Press Bed Width | 29 in |
| Current | Not Applicable |
| Maximum Ram Advance Speed | 7 in/sec |
| Operation | Manual |
| Ram-to-Table Distance - Maximum | 54-1/2 in |
| Capacity | 30 ton |
| Maximum Ram Press Speed | 34 in/sec |
| Press Bed Depth | 4 in |
| Base Depth | 36 in |
| Motor Speed - Maximum | Not Applicable |
| Required Air Pressure - Maximum | Not Applicable |
| Ram-to-Table Distance - Minimum | 7 in |
| Hydraulic Hose Length | 6 ft |
| Pump Model Number | P84 |
| Horsepower | Not Applicable |
| Required Air Pressure - Minimum | Not Applicable |
| Cylinder Model Number | RR3014 |
| Package Quantity | 1 |
