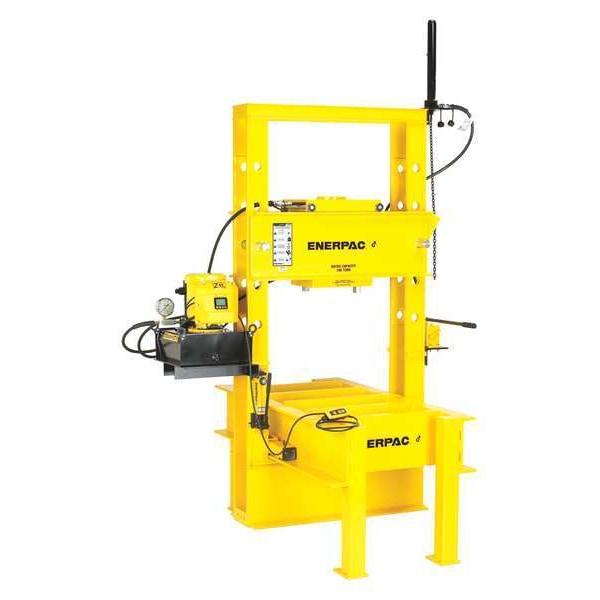

IPR20075, 200 Ton Roll Frame Hydraulic Press, RR20013 Double-Acting Cylinder, ZE5420SGN Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 200 ton |
| Frame Type | Roll Frame |
| Cylinder Stroke | 13 in |
| Pump Type | Electric |
| Base Length | 84-5/8 in |
| Base Width | 84-5/8 in |
| Overall Height | 126 in |
| Total Height | 125.96 in |
| Item | Hydraulic Press |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Cylinder | Mfr. No. RR-20013 |
| Reservoir Capacity | 5 gal |
| Working Height | 126" |
| Application | Pressing Bearings |
| Features | Welded Frame |
| Cylinder Type | Double Acting |
| Bed Height | 36" |
| Strokes to Extend Piston 1 In | 1.5 |
| Total Width | 84-1/2 in |
| Pump | Mfr. No. ZE5420SG-N |
| Hose Length | 10 ft |
| Ram Travel | 10 in |
| Working Width | 86-1/2 in |
| Overall Width | 84-5/8 in |
| Max. Ram-to-Table Distance | 51 in |
| Adjustable Bed | Adjustable |
| For Use With | Cylinder Mfr. No. RR20013 |
| Width Between Table Channels | 9-1/8 in |
| Overall Length | 86-1/2 in |
| Distance Between Uprights | 48 in |
| Pressure | 10,000 psi, 200 tons |
| Max. Ram Advance Speed | 3.1 in/min |
| Stroke | 1-1/2 in |
| Max. Ram Press Speed | 22.1 in/min |
| Operating Pressure | 10,000 psi |
| Overall Depth | 86-1/2 in |
| Series | IPR |
| Maximum Bed Width | 48 in |
| Maximum Vertical Daylight | 51 in |
| Maximum Ram Press Speed | 22.1 in/min |
| Cylinder Model Number | RR20013 |
| Maximum Ram Advance Speed | 3.1 in/min |
| Pump Model Number | ZE5420SGN |
| Press Bed Depth | 9-1/8 in |
| Capacity | 200 ton |
| Hydraulic Hose Length | 10 ft |
| Press Bed Width | 48 in |
| Base Depth | 86-1/2 in |
| Operation | Electric |
| Ram-to-Table Distance - Minimum | 11 in |
| Ram-to-Table Distance - Maximum | 51 in |
| Package Quantity | 1 |
